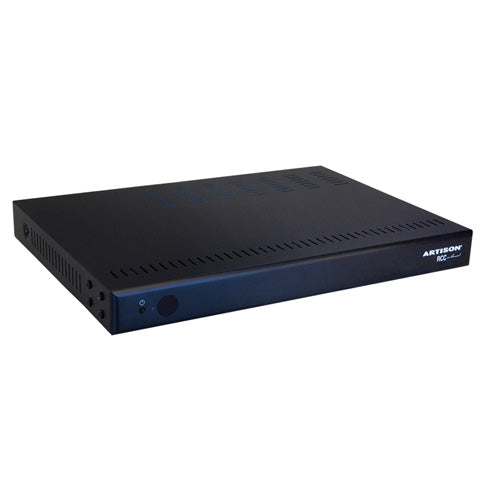

Artison RCC1000-SA Subwoofer Amplifier
The RCC1000 Subwoofer Amplifier is a powerful Class D amplifier that delivers 1,000 watts of output specifically engineered with advanced DSP software to power the RCC320 and RCC640 series In-Wall Subwoofers. Each RCC1000-SA drives two RCC320s or one RCC640 subwoofer.
Specifications
- Dimensions: 1RU – 1.75” H x 19.0” W x 13.0” D, Overall with Rack Ears (included)
- Power Output: 1,000 Watts RMS for even the most demanding systems
- The RCC1000-SA is designed with pre-set DSP equalization for a flat frequency response when used with the RCC In-Wall Series subwoofers

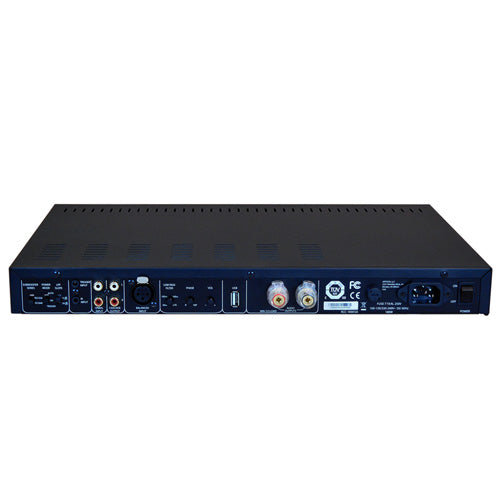

- Machined minimalist aluminium front panel with setup adjustments on rear panel
- Balanced input and RCA inputs with cascade output for multiple amplifiers
- Multiple adjustments allow you to fine tune the system
- Large gold plated binding terminals for a secure connection
- Weight: 14.5lbs / 6.6kg
- Frequency Response: 20 Hz – 200 Hz ± 3 dB
- Inputs:
- 1 ea. Balanced XLR
- 1 pr. Unbalanced RCA L/R
- Outputs:
- 1 Channel Speaker Level
- 1 pr. Unbalanced RCA L/R
- Compatible Speakers:
- (1) RCC640-R or RCC640-PC
- (2) RCC320-R or RCC320-PC, paralleled on output
- LPF Crossover: 40 – 160 Hz, LFE
- Phase Control: 0 – 180°
- Cabinet / Finish: Extruded Aluminum / Black Brushed Anodized Steel / Black Powdercoat
- Control: IR Remote Control, IR Rx on front panel, IR Input on rear panel
- Voltage: 110 – 230 AC Volts, Auto-Sensing Universal Supply
