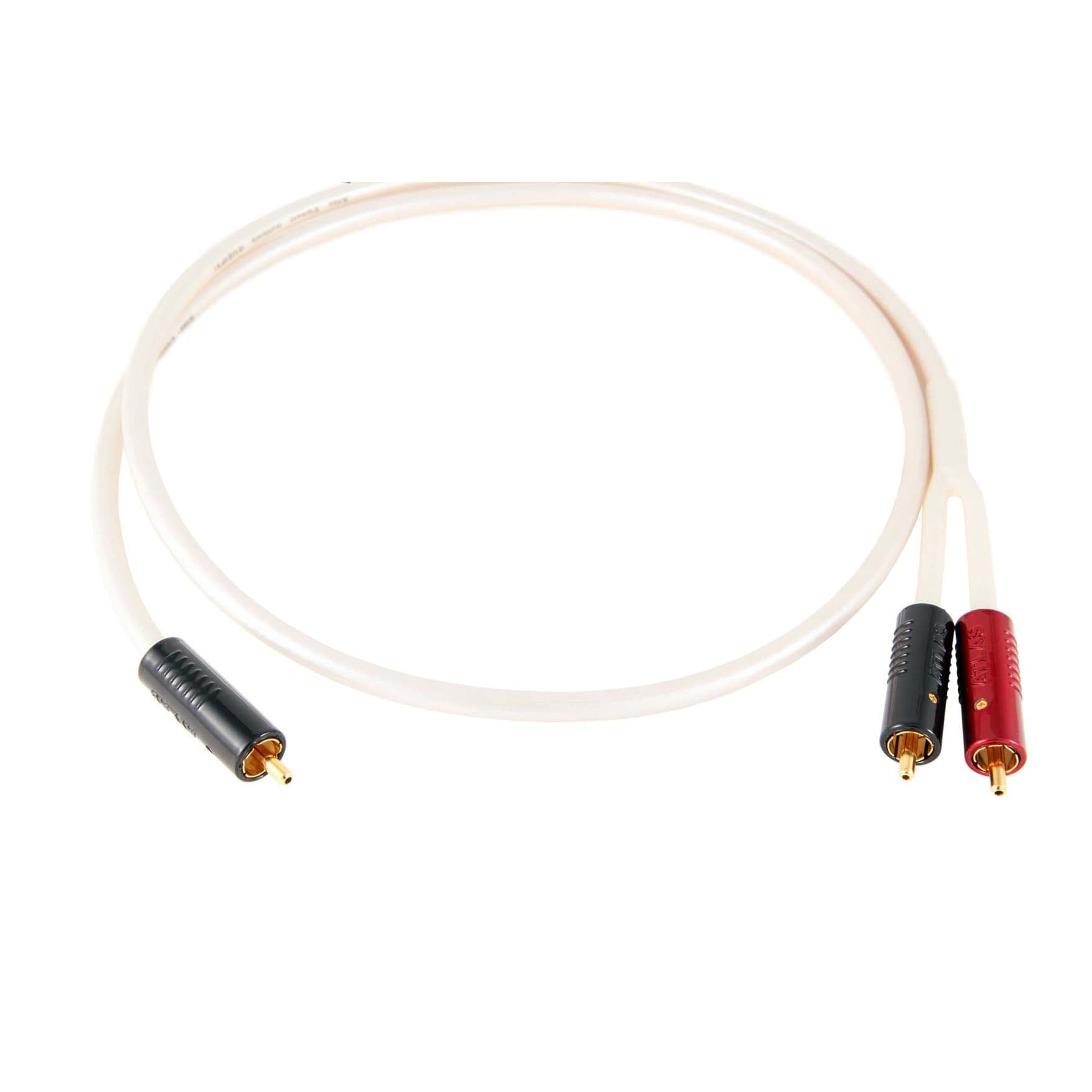

Atlas Equator Achromatic RCA Subwoofer 1:2 Cable
High performance subwoofer cable with a fast, dynamic, controlled sound. Available in 1:1 and 1:2* configurations. *The 1:2 version utilises OCC conductors with a screened 4 core construction.
Today’s sophisticated subwoofers for both audio and home cinema installations demand fast, accurate low frequency performance free of external RF (radio frequency) and EM (electro-magnetic) interference and noise picked up by the cable itself (usually heard as hum).
The Equator Achromatic’s conductor is now high purity OCC (Ohno Continuous Casting) copper encased with a superbly constructed double screen to provide maximum resistance to RFI (Radio Frequency Interference), helping make it perfectly suited to use with high-performance subwoofers in audio and/or home theatre systems..
The Equator range includes subwoofer, interconnect, streaming and speaker cables.
FEATURES
- Achromatic RCA
- OCC Conductors
- PEF Dielectric
- Co-ax Construction
Technology & Specifications
Construction |
Co-ax (Double Screened) |
Material |
OFC |
Dielectric |
PEF (foamed PE) |
Screen |
OFC, 95% (double OFC braid) |
Capacitance |
53.27 pF/m |
Inductance |
0.40 µH/m |
Resistance |
0.027 Ohms/m |
Impedance |
78.25 Ohms at (1MHz) |
Outside Diameter |
7.0mm |
