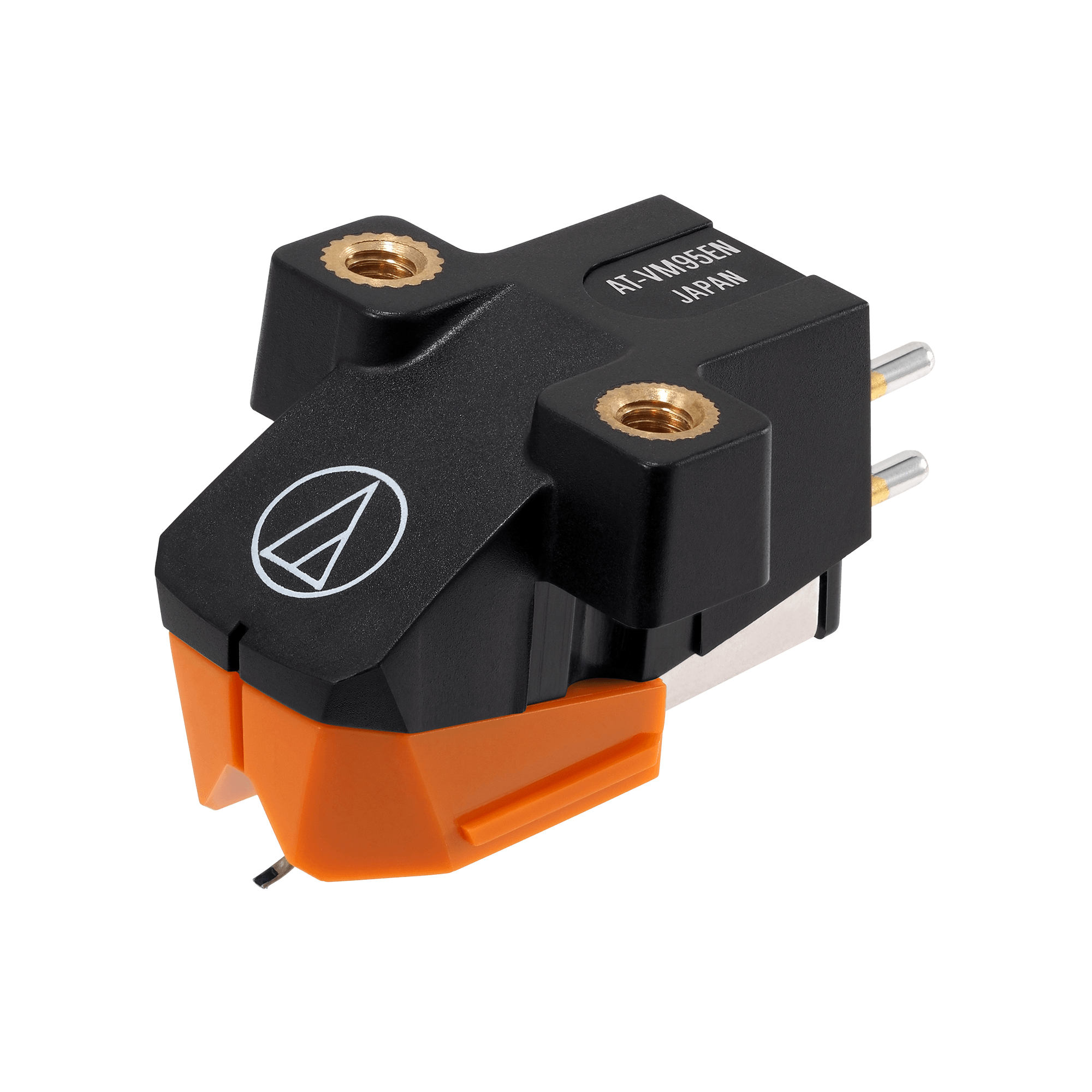

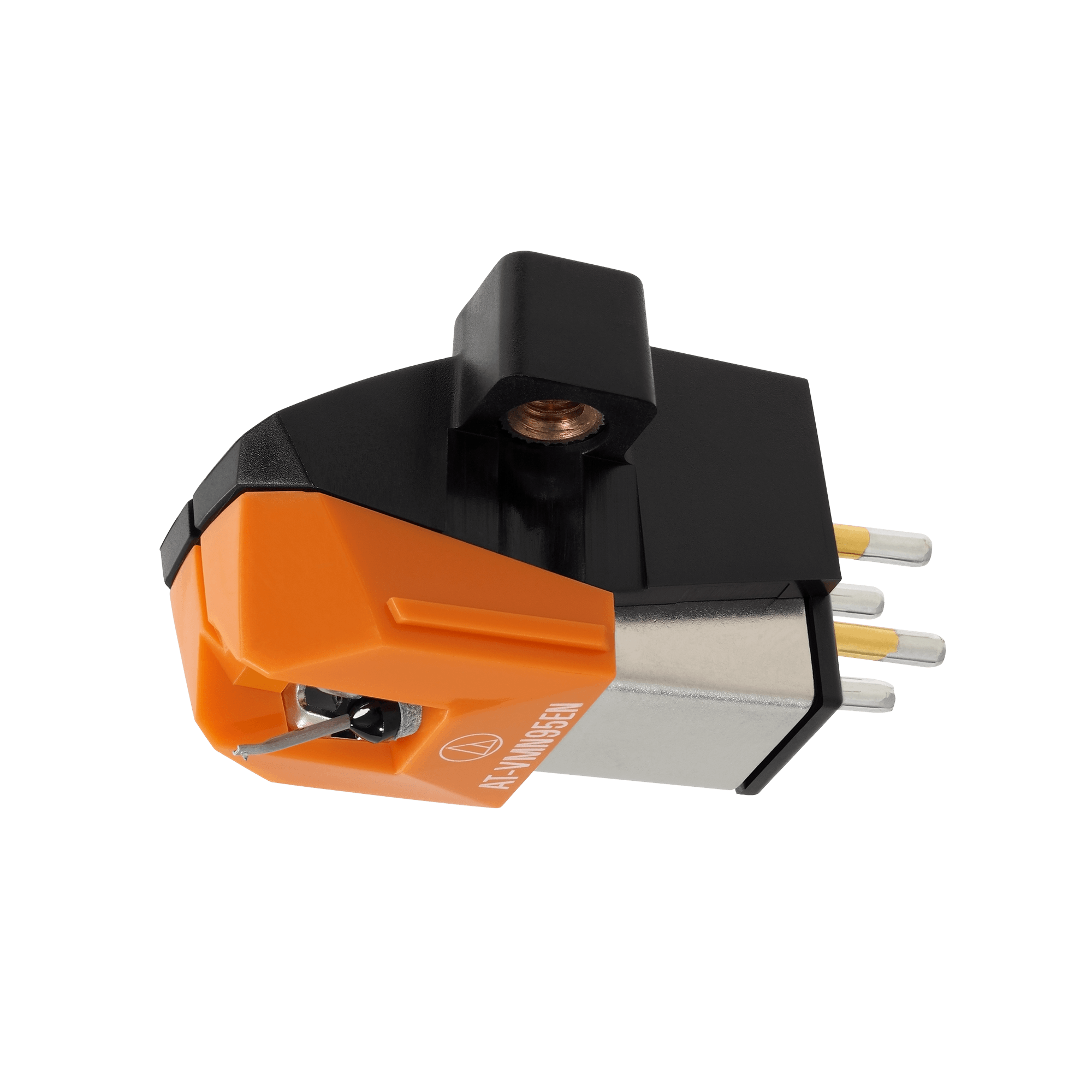

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Specifications
Cartridge & Stylus |
Frequency Response |
20 - 23,000 Hz |
Channel Separation |
22 dB (1 kHz) |
Vertical Tracking Angle |
23° |
Vertical Tracking Force |
1.8 to 2.2g (2.0g standard) |
Stylus Construction |
Nude Round Shank |
Recommended Load Impedance |
47,000 Ω |
Coil Impedance |
3.3 kΩ (1 kHz) |
DC Resistance |
485 Ω |
Coil Inductance |
550 mH (1 kHz) |
Output Voltage |
3.5 mV (@ 1 kHz, 5 cm/sec) |
Output Channel Balance |
2.0 dB (1 kHz) |
Stylus Shape |
Elliptical |
Cantilever |
Aluminium Pipe |
Static Compliance |
20 x 10 – 6 cm / dyne |
Dynamic Compliance |
7 x 10 – 6 cm / dyne (100 Hz) |
Mounting |
1/2” centres |
Cartridge Weight |
6.1g |
Dimensions |
17.2 x 18.9 x 28.3 ( H x W x D mm) |
Accessories Included |

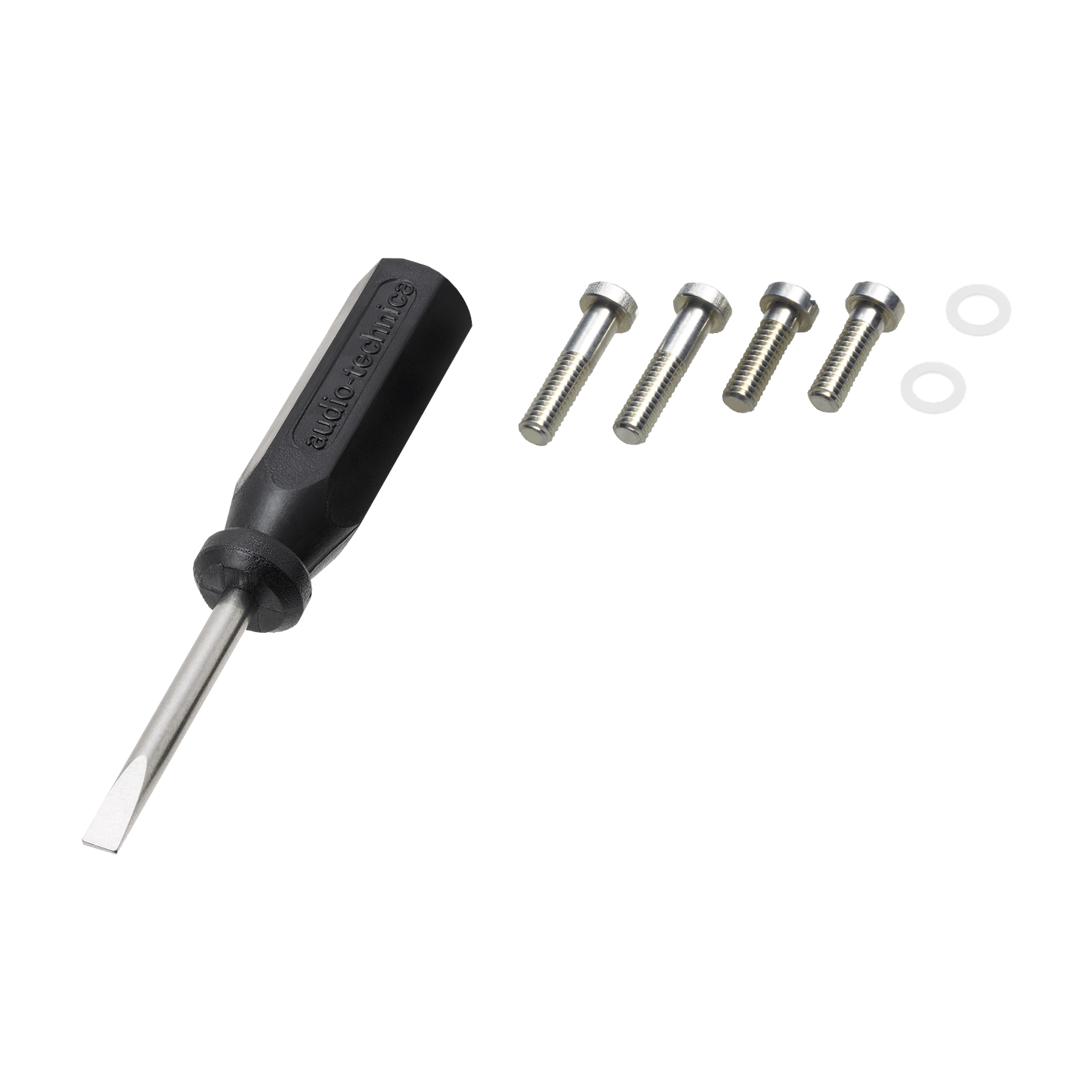

Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
Model |
AT-VM95EN |
Recommended Load Capacitance |
100-200 pF |
Replacement Stylus |
AT-VMN95EN |
Stylus Size |
0.3 x 0.7 mil |
Type |
VM Stereo Dual Magnet |
Wire Used for Coil |
T.P. Copper |
