AV Gear AVG-K12-VGA

HDBaseT Educational Kit

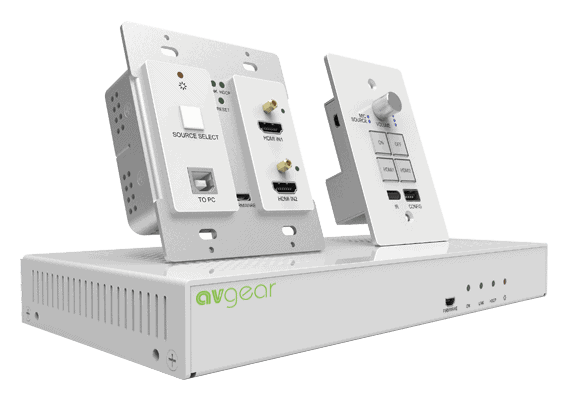

The AVG-K12 is designed to be used in education and commercial environments. The Kit consists of a Scaler Wall Plate HDBaseT Transmitter, an HDBaseT Receiver and a Control Panel.

The Transmitter has HDMI and VGA inputs, which support HDCP1.4 and can be switched easily. It can transmit HDMI / VGA signals to the Receiver via CAT5e/CAT6a cable up to a maximum distance of 30m at 1920×1080@60HZ.

Features

Switch easily between two source signals. HDMI/HDMI or HDMI/VGA.

HDMI output resolution up to 1920×1080@60Hz.

Transmission distance of 30m for 1080p/60Hz over single CAT5e / CAT6a

Supports HDMI 1.4 & HDCP1.4

Microphone and line level input.

Built in 2×20 Watt @ 4ohm amplifier.

Customizable Control Panel supports IR Learning and RS232 control.

IR learning and pass through capability built in

Supports UPNP.

Specifications

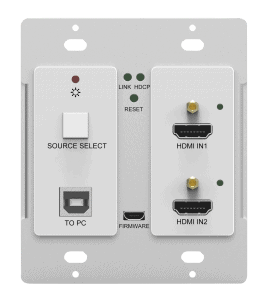

Transmitter
Input Ports	2 x HDMI	Output Port	1 x HDBT + Power
Input Connectors	HDMI female	Output Connector	RJ45
Transmission Mode	HDBaseT
Control Ports
1 x USB1 x Micro USB
General
Resolution	1920×1080 (24/25/30/50/60Hz), 1920×1080 (50/60Hz), 1920x1080i (50/60Hz), 1600×900, 1366×768, 1280×720, 1920×1200, 1680×1050, 1440×900, 1360×768,1280×800, 1600×1200, 1400×1050, 1280×1204,1024×768, 800×600, 640×480
Deep Colour	24-Bit at 1920×1080（24/25/30/50/60Hz）4:4:4 48-Bit at 1920×1080（50/60Hz）4:4:4
Signal Extension	Up to 30 metres @ 1080p/60 via Cat5e/6a cable.
Bandwidth	10.2Gbps
HDMI Standard	Supports HDMI1.4 and HDCP1.4
Temperature	0 ~ 50℃	Reference Humidity	10% ~ 90%
Dimensions (WHD)	105 x 89 x 44mm	Weight	242g

Receiver
Video Ports
Input	1 x HDBT + Power	Output	1 x HDMI
Input Connector	RJ45	Output Connector	HDMI female
Audio Ports
Input	1 x MIC	Output	1 x amplifier (2x20Watt@4Ω)1 x Analog Audio (Line out)
Input Connector	3 pin terminal block	Output Connector	4 pin terminal block3 pin terminal block
Control Ports
1 x USB-A1 x IR Out (3.5mm jack) 1 x RS232 (3 pin terminal block) 1 x TCP/IP (RJ45)
Other Ports
1 x Remote Mute (2 pin terminal block)

General
Resolution	1920×1080 (24/25/30/50/60Hz), 1920×1080 (50/60Hz), 1920x1080i (50/60Hz), 1600×900, 1366×768, 1280×720, 1920×1200, 1680×1050, 1440×900, 1360×768, 1280×800, 1600×1200, 1400×1050, 1280×1204, 1024×768, 800×600, 640×480
Deep Colour	24-Bit at 1920×1080（24/25/30/50/60Hz）4:4:4;48-Bit at 1920×1080（50/60Hz）4:4:4
Audio Format	HDMI embedded audio: PCM/Dolby/DTSMIC input audio: PCM/Dolby Digital/DTS/DTS-HD Analog output Audio: PCM
Signal Extension	Up to 30 metres @ 1080p/60 via Cat5e/6a cable.
Bandwidth	10.2Gbps
HDMI Standard	Supports HDMI1.4 and HDCP1.4
Power Supply	DC24V 2.71A	Power Consumption	55w (Max)
Temperature	0 ~ 50℃	Reference Humidity	10% ~ 90%
Dimensions (WHD)	250 x 31 x 130mm	Weight	642g

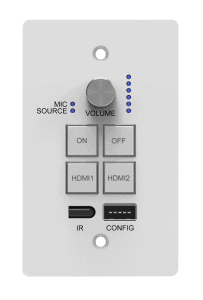

Control Panel
Program Port	1 x Micro USB	Output Port	1 x RS232 + Power
Others	1 x Knob4 x Buttons (ON, OFF, HDMI 1, HDMI 2) 1 x IR in-built sensor
Temperature	0 ~ 50℃	Humidity	10% ~ 90%
Case Dimensions	114 x 70 x 34mm	Weight	140g
