AV Gear AVG-MC-4I-SD SDI Input Card

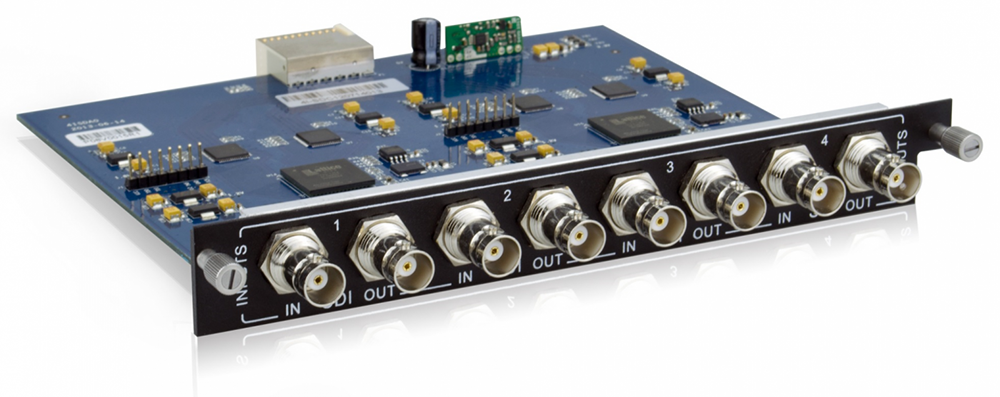

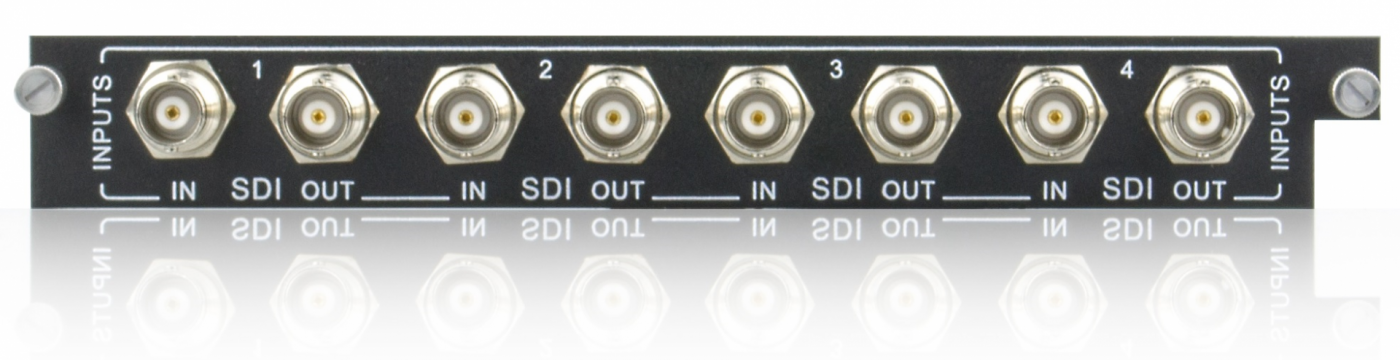

The AVG-MC-4I-SD is an SDI Modular Input card for the DMM1616 Cage, it has 4 SDI inputs and each input has a loop output. It is compatible with 3G-SDI, HD-SDI &SD- SDI.

Features

  • Supports different SDI signal formats including SD/HD/3G-SDI(adaptive)
  • Local loop out for monitoring.
  • Cross Switching to any Output Series Card.

    Specifications

    Input Output
    Input 4 SDI Output 4 SDI
    Input Connector Female BNC Output Connector Female BNC
    Input Level 0.8Vp-p ± 10% output Level 0.8Vp-p ± 10%
    Input Impedance 75Ω Output Impedance 75Ω
    General
    Gain Unity Maximum Data Rate 2.97 Gbps
    Transmission Distance 300M (Max.) Data rate Lock Auto
    Input Return Loss <-14 dB @ 1 MHz ~ 1.5 GHz Input Return Loss <-14 dB @ 1 MHz ~ 1.5 GHz
    Video Standard SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120 Data Type 8bit, 10bit
