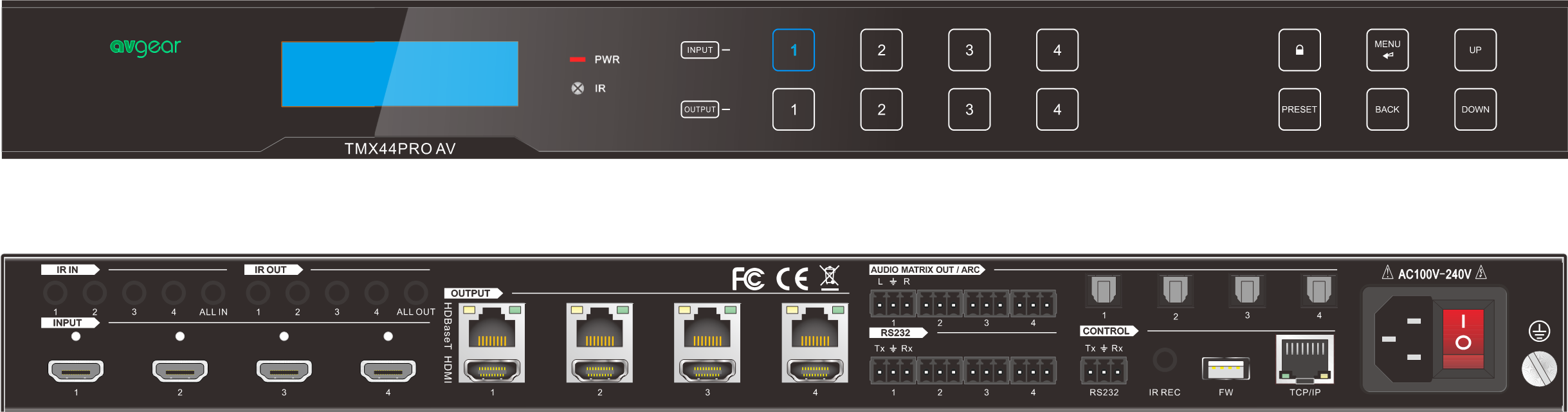

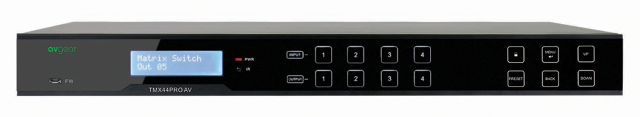

The TMX44PRO AVK is a professional 4×4 HDMI 2.0 HDBaseT matrix Kit.

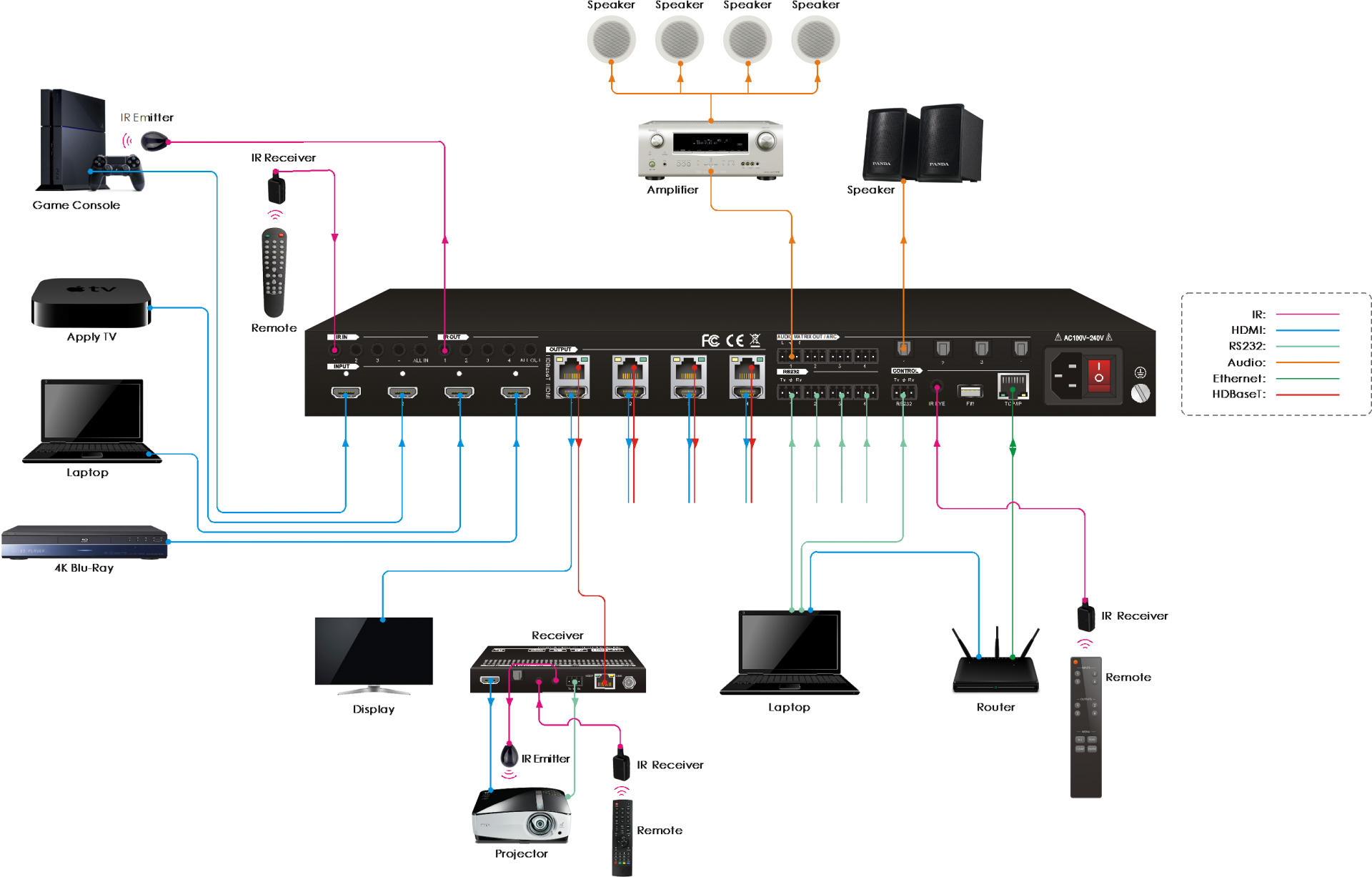

The kit includes the matrix switcher with four receivers. The matrix is a 4 input by 4 output HDBaseT and HDMI matrix with a built in audio matrix. It features HDCP 2.2 and up to 4K/UHD@60Hz video support. It transmits 4K video to distances up to 40 meters and 1080p video to distances up to 70 meters over a single CATx Ethernet cable.
| Video Input | |
| Input | (4) HDMI |
| Input Connector | (4) Type-A female HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4, HDR10,1080p 3D |
| Video Output | |
| Output | (4) HDBaseT, (4) HDMI |
| Output Connector | (4) RJ45, (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4, HDR10, 1080p 3D.Supports 4K to 1080p down-scaling. |
| HDBaseT Output Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| Audio Output | |
| Output | (4) Stereo analog L+R audio, (4) Digital SPDIF audio |
| Output Connector | (4) 3-pin terminal blocks, (4) Toslink connectors |
| Analog L+R Audio Format | Supports PCM |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Local Audio Sampling Rate | Supports 44.1KHz, 48KHz, 96KHz |
| ARC Audio Sampling Rate | Supports 48KHz, 96KHz |
| Frequency Response | 20Hz – 20KHz, ±3dB |
| Audio Output Impedance | 70Ohms |
| Max Input Level | L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal.SPDIF:±0.05dBFS. |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level). |
| SNR | L+R: > 80dB, 20Hz – 20KHz bandwidth.SPDIF: > 90dB, 20Hz-20 kHz bandwidth. |
| Crosstalk Isolation | SPDIF: < -70 dB, 10KHz sine at 0dBFS level (or max level before clipping).L+R: < -80 dB, 10KHz sine at 0dBFS level (or max level before clipping). |
| L-R Level Deviation | L+R: < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping). |
| Frequency Response Deviation | < ± 0.5dB 20Hz – 20KHz. |
| Output Load Capability | L+R: 1KΩ and higher (Supports 10x paralleled 10KΩ loads). |
| Stereo Channel Separation | >70dB@1KHz. |
| Noise Level | L+R: -80dB; SPDIF: -90dB |
| Control Part | |
| Control port | (4) IR IN, (1) IR ALL IN, (4) IR OUT, (1) IR ALL OUT, (1) IR REC, (5) RS232, (1) FIRWARE, (1) TCP/IP |
| Control Connector | (11) 3.5mm jacks, (5) 3-pin terminal blocks, (1) Type-A USB, (1) RJ45 |
| General | |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤ 230 feet (70 meters),4K@60Hz ≤ 131 feet (40 meters) |
| Bandwidth | 18Gbps |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | 100V~240V AC, 50/60Hz |
| Power Consumption | 65W (Max) |
| Dimension (W*H*D) | 436.4mm x 44mm x 356.6mm |
| Net Weight | 3.3kg |
| Video | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Input Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| Output | (1) HDMI |
| Output Connector | (1) Type-A female HDMI |
| Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit, HDR10 |
| Audio | |
| Input | (1) ARC Audio In |
| Input Connector | (1) Toslink Connector |
| Output | (1) Audio Breakout |
| Output Connector | (1) Toslink connector |
| Audio Format | Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD. |
| Frequency Response | 20Hz – 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | > 85dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz – 20KHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >70dB@1KHz |
| Control | |
| Control Part | (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 |
| Control Connector | (1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
| General | |
| Bandwidth | 18Gbps |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| CEC | Pass-through |
| Bidirectional PoC | Supported |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080p ≤ 20m |
| Transmission Standard | HDBaseT |
| Transmission Distance | 1080p@60Hz ≤ 230 feet (70 meters),4K@60Hz ≤ 131 feet (40 meters) |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output:24V DC 1.25A |
| Power Consumption | 12W (Max) |
| Dimension (W*H*D) | 40mm x 19.5mm x 84mm |
| Net Weight | 290g |
