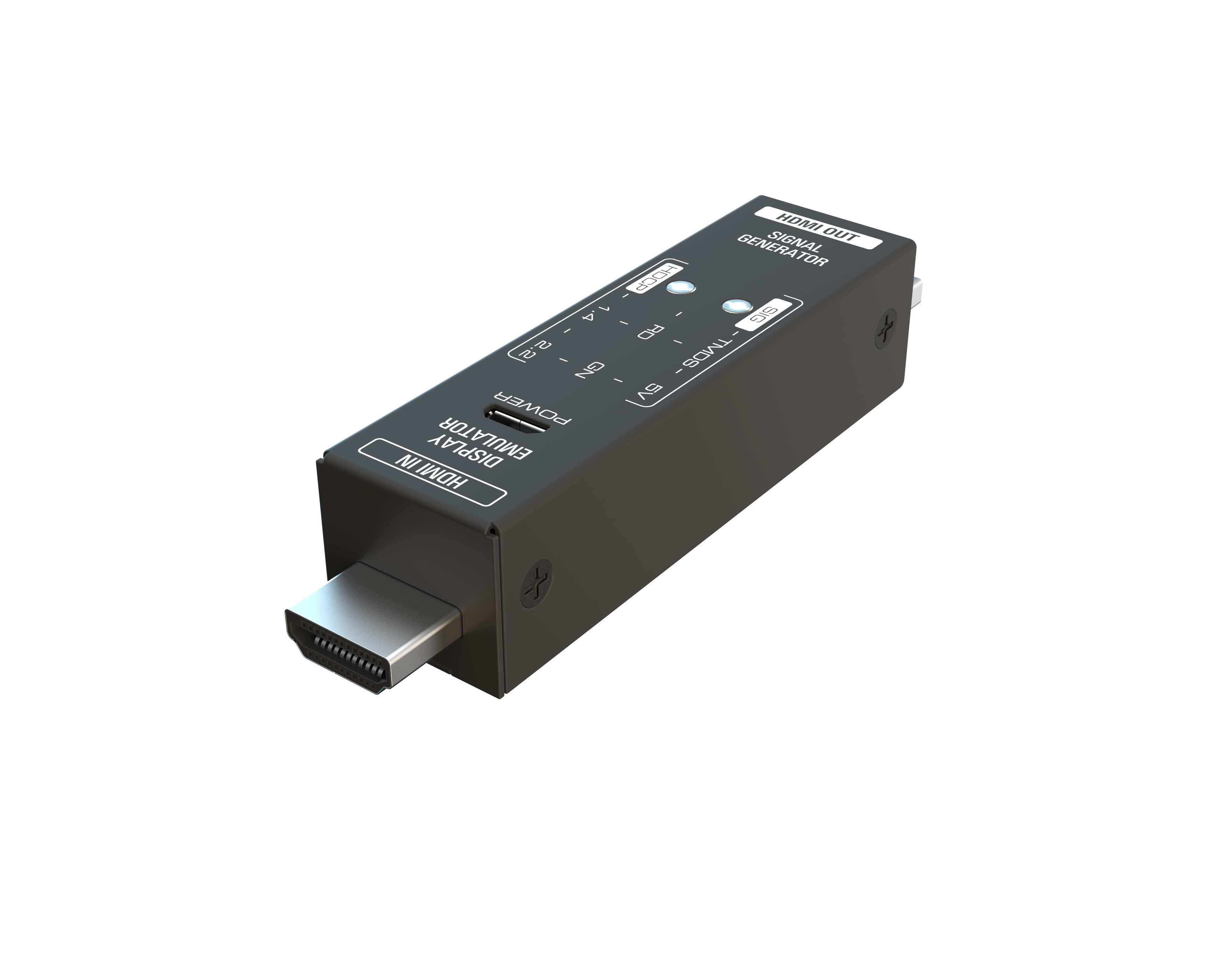

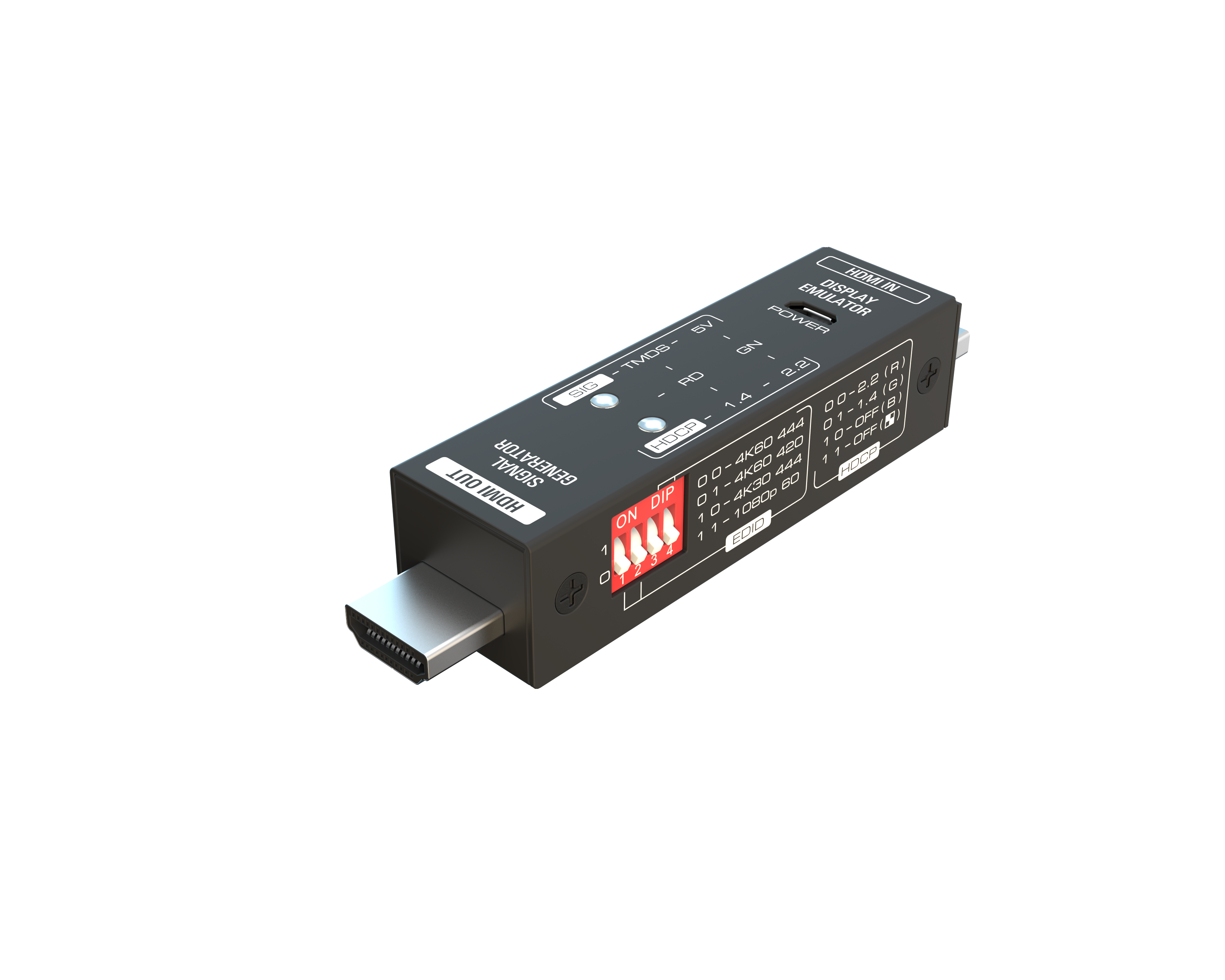

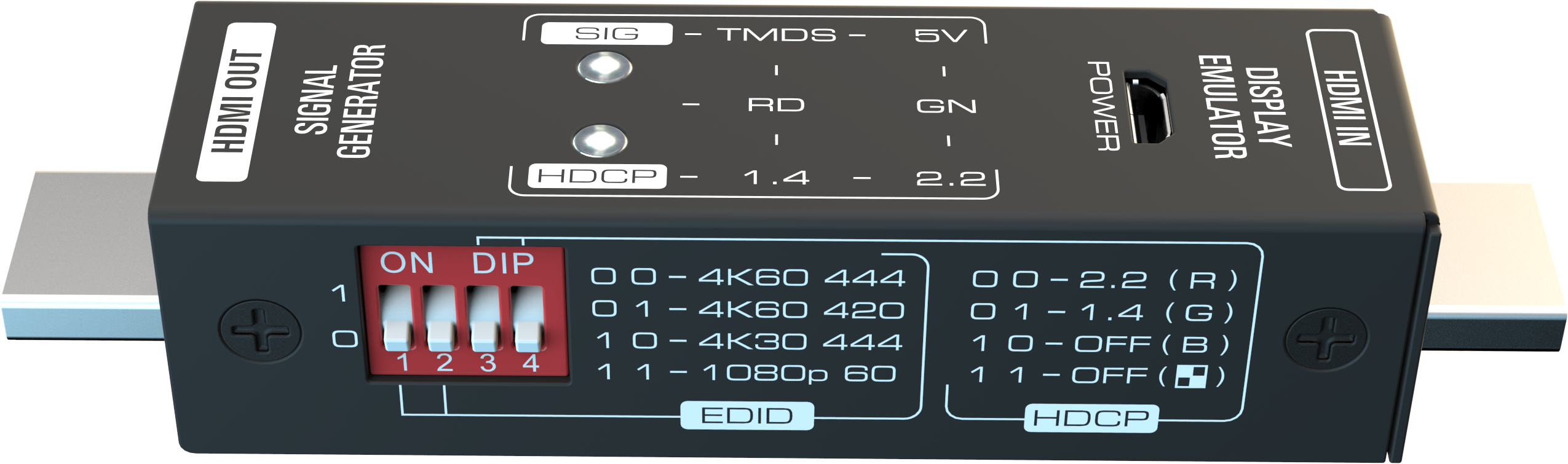

The AVG-SG1 is a portable mini HDMI signal generator and display emulator (signal analyzer), two functions combined into a compact size chassis.
|
Connectors |
|
|
Input |
(1) HDMI IN |
|
Input Connector |
(1) 19-pin type-A male HDMI |
|
Output |
(1) HDMI OUT |
|
Output Connector |
(1) 19-pin type-A male HDMI |
|
Power Connector |
(1) Micro-USB |
|
Control |
(1) 4-pin DIP switch |
|
General |
|
|
Input Video Resolution |
Up to 4K@60Hz 4:4:4 8bit |
|
Output Video Resolution |
Supports 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz to be selected. |
|
HDMI Version |
2.0 |
|
HDCP Content |
2.2, 1.4 |
|
Power Supply |
5VDC 1A (USB power cord) |
|
Power Consumption |
2W (Max) |
|
Operation Temperature |
-5 to +55℃ (+23° to +131°F) |
|
Storage Temperature |
-25 to +70℃ (-13° to +158°F) |
|
Relative Humidity |
10% to 90%, non-condensing |
|
Dimensions (W*H*D) |
75mm x 22mm x 19mm |
|
Net Weight |
65g |
