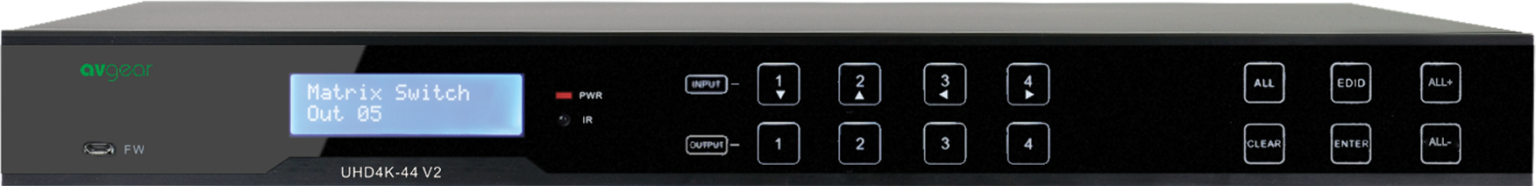

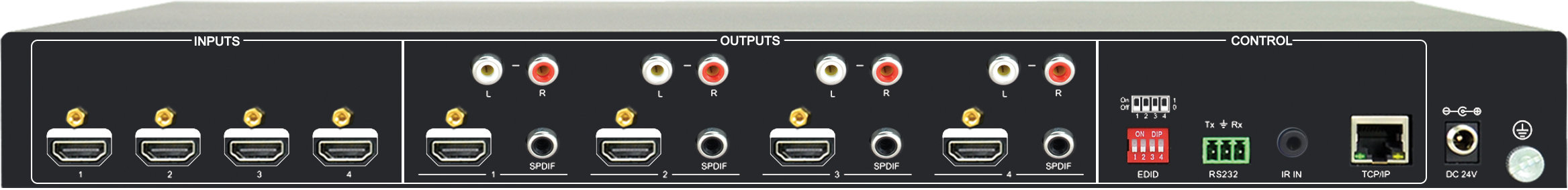

The product is a professional 4×4 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 4 HDMI inputs, 4 HDMI outputs and the last two outputs feature a down-scaling function, which is designed for switching four HDMI2.0 and HDCP2.3 compliant signals. It also features 4 SPDIF and 4 analog audio outputs for the built in audio matrix.
| Video | |
| Video Input | (4) HDMI |
| Video Input Connector | (4) Type-A female HDMI |
| Video input Video Resolution | Up to 4K@60Hz 4:4:4 |
| Video Output | (4) HDMI |
| Video Output Connector | (4) Type-A female HDMI, |
| Video output Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDMI Output | Supports up to 5V 500mA for AoC cable |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.3 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Digital Audio Output | |
| Output | (4) Digital SPDIF audio |
| Output Connector | (4) Toslink connector |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Frequency Response | 20 Hz to 20 kHz, ±1dB |
| Max Output level | ±0.05dBFS |
| THD+N | < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
| SNR | > 90dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | < -70 dB, 10 kHz sine at 0dBFS level (or max level before clipping) |
| Noise | -90dB |
| Analog Audio Output | |
| Output | (4) Analog L/R Audio |
| Output Connector | (4) L&R (RCA) |
| Digital SPDIF Audio Format | PCM 2CH |
| Frequency Response | 20Hz to 20KHz, ±1dB |
| Max output level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal |
| THD+N | < 0.05%, 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz-20KHz bandwidth |
| Crosstalk Isolation | < -80 dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level deviation | < 0.05dB, 1 KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz – 20KHz |
| Output Load Capability | 1Kohm and higher (supports 10x paralleled 10k ohm loads) |
| Noise | -80dB |
| Control | |
| Control Port | (1) IR REC, (1) RS232, (1) FIRMWARE, (1) TCP/IP |
| Control Connector |
(1) 3.5mm jack, (1) 3-pin terminal block, (1) USB-A, (1) RJ45, |
| General | |
| Transmission Distance | 4K/60Hz/444 5m, 4K/60Hz/420 10m,1080P 15m |
| Bandwidth | 18Gbps |
| Operation Temperature | -5~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humility | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A |
| Maximum Power Consumption | 18W (Max) |
| Dimension (W*H*D) | 436.4mm*44mm*236mm |
| Net Weight | 2.6kg |
