AV Gear AVG-UHS24

  • HDMI2.0 Switcher 2×4 with Audio De-embedding

The AVG-UHS24 is an ultra thin 2×4 switcher splitter with two HDMI inputs and four HDMI outputs. This switcher splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080P and multichannel audio. There are multiple builtin EDID settings or it will use the EDID from the display. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system.

 Features

  • Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
  • HDMI inputs support HDCP 2.2 and the outputs support HDCP 1.4.
  • Supports video resolution down-scaling, the 4K@60Hz input can be automatically down-scaled to 1080P output for compatibility with a 1080P display.
  • 18Gbps high bandwidth.
  • Features RCA (L/R) jack and Toslink connector for de-embedded audio.
  • Advanced EDID management: multiple pre-sets and user defined options.
  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
  • Supports CEC control to turn the displays on/off and adjust their volume.
  • LED indicators display the operating status.
  • Firmware update via Micro-USB port.

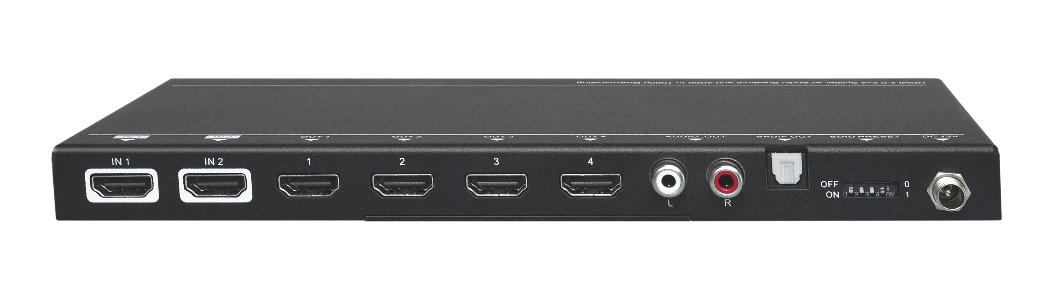

Specifications

Video Input
Input (2) HDMI
Input Connector (2) Female type-A HDMI
HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard 2.0
HDCP Version 2.2
CEC Supported
Video Output
Output (4) HDMI
Output Connector (4) Female type-A HDMI
HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard 2.0
CEC Supported
Audio
De-embedded Output (1) AUDIO OUT; (1) SPDIF OUT
Output Connector (1) RCA (L/R) jack; (1) Toslink connector
HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Stereo Analog L/R Audio Format PCM
Toslink Digital Audio Format PCM, Dolby Digital, DTS, DTS-HD
Frequency Response 20Hz ~ 20KHz, ±3dB
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N <0.05% (-80 dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR >80dB, 20Hz ~ 20 KHz bandwidth
Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation <± 0.5 dB 20Hz ~ 20KHz
Output Load Capability 1K ohm and higher (supports 10x paralleled 10k ohm loads)
Stereo Channel Separation >70dB@1kHz

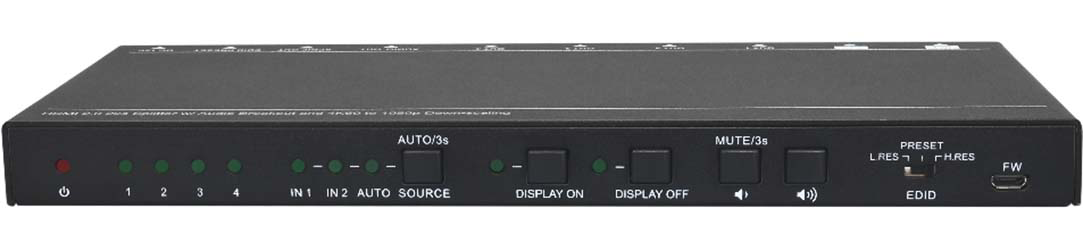

Control
Control Part

(5) Control buttons; (1) EDID 3-pin DIP switch;

(1) EDID 4-pin DIP switch; (1) Micro-USB port
General
Bandwidth 18Gbps
Operation Temperature -10℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humility 10%-90%
Power Supply Input:100V~240V AC; Output: 12V DC 1A
Power Consumption 12W(Max)
Dimension (W*H*D) 232mm x 20mm x 100mm
Net Weight 660g
