AV Gear AVG-DMM88A PBK
- 8×8 HDMI Matrix Pre Built KIT
- with 8 HDBaseT including 8 Receivers

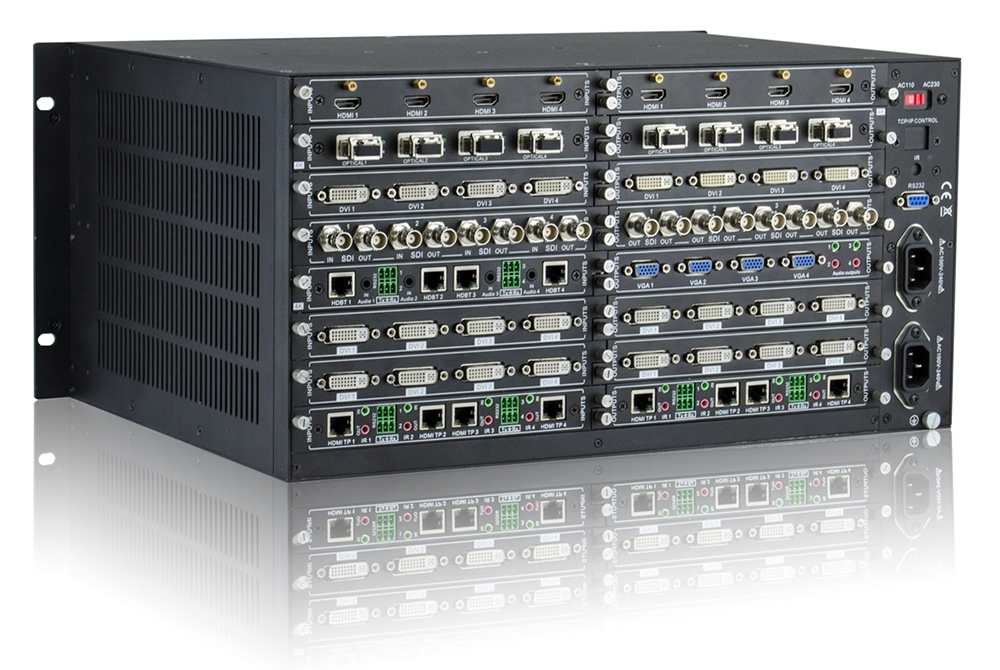

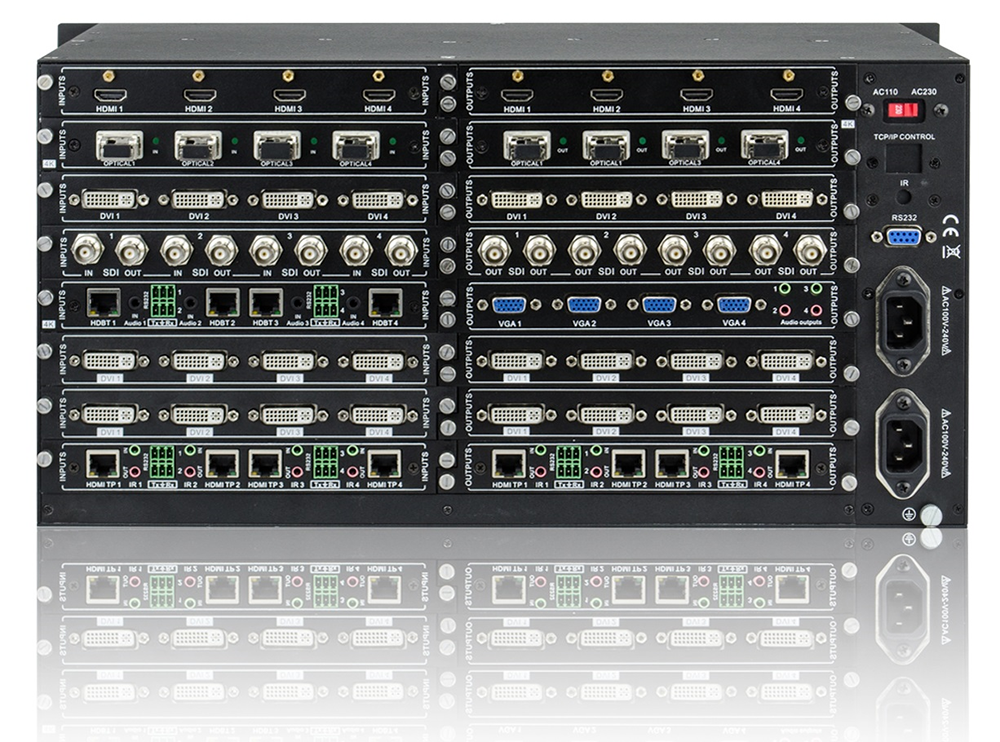

The DMM88A is a 4K supported, seamless crosspoint switching, high−performance modular matrix switcher chassis for various digital and analog signals. This modular design features 2 input slots & 2 output slots, with maximum of 8 inputs and 8 outputs supported in this chassis. It also has a separate 8×8 audio matrix built in as standard.
Features
- Supports 4Kx2K & 1080p 3D
- Seamless cross-point switching.
- Configurable and flexible I/O with audio matrix up to 8×8.
- Available with a choice of I/O cards, HDBaseT, HDMI, Optical, SDI, DVI and VGA/audio cards.
- Any signal format you want!
- True cross-point switching, any input to any output.
- Ultra-fast switching for instantaneous display.
- Smart EDID management.
- HDCP compatible.
- Controllable via front panel, IR, RS232 and optional TCP/IP and a 2 way RTi driver
- Audio breakaway switching.
Specifications
Control Parts | |||
Serial Control Port | RS232, 9- female D connector | Configurations | 2 = TX, 3 = RX, 5 = GND |
Installation | Rack mountable | Front Panel Control | Buttons |
Options | TCP/IP control | ||
General | |||
Power Supply | 100VAC ~ 240VAC, 50/60Hz | Power Consumption | 60W (Max) |
Temperature | -10 ~ +40ºC | Humidity | 10% ~ 90% |
Dimension (W*H*D) | 483 x 88 x 320mm (2U high) | Weight | 3Kg |
Audio | |||
Audio Input | 8 stereo | Audio Output | 8 stereo |
Input Connector | 3.5 mm captive screw connectors, 5 pole | Output Connector | 3.5 mm captive screw connectors, 5 pole |
Input Impedance | >10KΩ | Output Impedance | 50Ω |
Audio General | |||
Frequency Response | 20Hz~20KHz, ±0.5dB | CMRR | >90dB@20Hz~ 20KHz |
Stereo Channel Separation | >80dB@1KHz | THD + Noise | 1% @ 1 KHz, 0.3% @ 20 KHz at nominal level |
Audio Bits per Sample | 18 bits per channel, 2 channels (L, R) |
