The PRO-IN4HAB board features 4 x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI / HDBaseT™ output board. Each HDMI input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Features 4 x HDMI 2.0 inputs which can be independently routed to video output cards
Supports HDMI 2.0 18Gbps specification including HDR support
Supports up to 4K UHD 60Hz 4:4:4
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Each HDMI input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
HDCP 2.2 Support

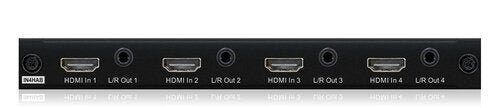

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Audio Output Connectors: 4 x Analogue Left / Right audio (3.5mm stereo jack)
Card Dimensions (W x H x D): 170mm x 22mm x 177mm
Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
