The PRO-OUT2H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to two independent displays.
PRO-OUT2H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Features 2 x HDMI outputs for connection to HDMI displays
Supports HDMI 2.0 18 Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4*
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
HDCP 2.2 Support
*For HDMI 2.0 18Gbps video distribution the PRO-OUT2H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

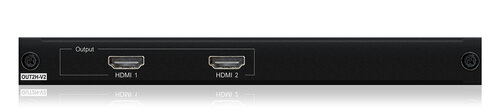

Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Card Dimensions (W x H x D): 182mm x 22mm x 177mm
Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
