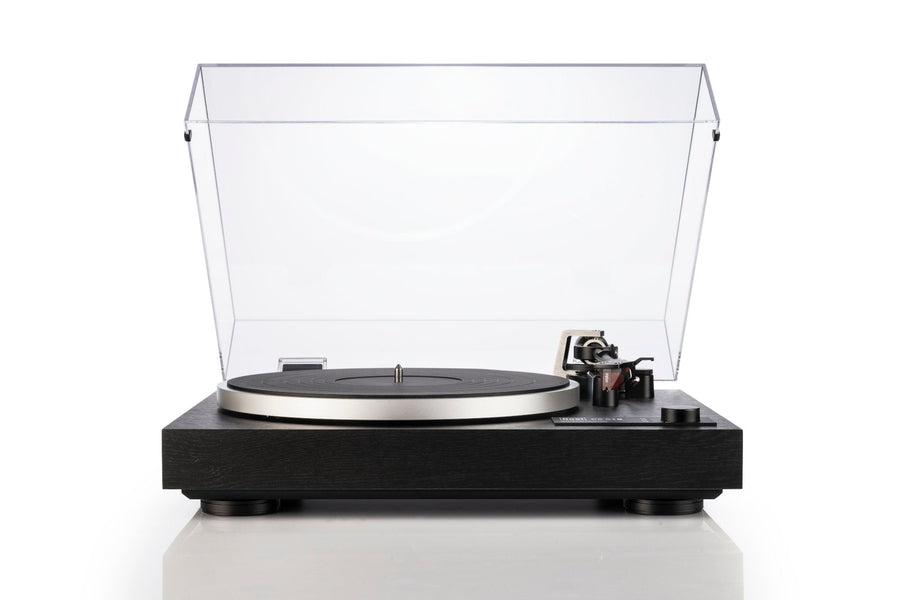

Dual CS 518 The Twin Gimbal Turntable

Brand: Dual Turntables

$1,299.99 $1,181.00 Save $118.99
/
10 interest free payments from $118.10 with

For the true Vinyl Enthusiast, the CS 518 is equipped with a twin gimbal tonearm design using pivot ball-bearings for optimal precision.

This superior tonearm has the ability to guide even high end pickups with the greatest degree of precision and reliability.

The Ortofon 2M Red pickup and a switchable MM-phono preamplifier are an integral part of this ready to run package.



Plinth: Solid MDF

  • Folded MDF construction with a black vinyl veneer
  • Elastomer vibration absorber integrated inside the feet
  • Removable dust cover



Platter: Aluminium Die-cast

  • Precise aluminium die-cast
  • Heavy rubber mat for resonance damping
  • Solid platter bearing with a hardened steel spindle in a brass bushing



Tonearm: Twin Gimbal Design

  • Straight, statically balanced
  • Solid aluminium construction with precision pivot ball-bearing
  • Adjustable tracking force and antiskating



Drive: DC- Motor / Belt

  • Low vibration DC-Servo-Motor
  • Rubber mountings for vibration decoupling
  • Precision cut belt for lower wow & flutter



TECHNICAL DATA:

Motor:

Drive:

Belt


Speed settings:

33/45/78


Wow & Flutter:

< ±0,1 % (DIN WTD)


Tonearm:



Auto-Start/-Stop-Function:

✕


Bearing:

4 x Pivot ball-bearing / twin gimbal mounting


Effective length:

221,5 mm


Offset Angle:

25,6°


Overhang:

19 mm


Type:

statically balanced


Stylus Pressure Range:

0 g bis 4 g


Cartridge Weight Range:

5 g bis 9 g


Factory installed pick up:

Ortofon 2M Red


Platter:



Material:

Aluminium die-cast


Mat:

Rubber 2,5 mm


Bearing:

Hardened steel spindle Brass bushing:


Diameter:

305 mm


Weight (incl. Mat):

850 g


Plinth:



Material:

MDF, folded


Surface finish:

Vinyl veneer / Black


Feet:

Ø 62 mm / Elastomer


Connection:

RCA socket


Connection to Phono Input:

✓


Connection to Line Input:

✓


Digital Output:

✕


Dimension, closed dustcover:

435 x 367 x 145 mm


Dimension, open dustcover:

D: 415 mm / H: 400 mm


Weight:

5,9 kg


Power plug AC / DC:

External power supply
