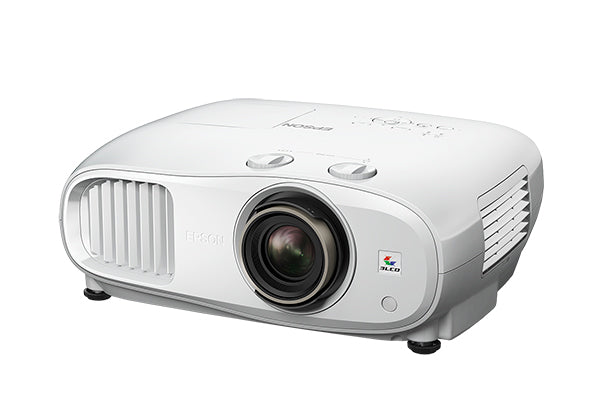

Epson EH-TW7100 Projector
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
KEY FEATURES & BENEFITS
-
4K PRO-UHD1 – a new type of 4K home theatre projection technology only from Epson
-
Advanced 3LCD projector design – a true 3-chip design, 3LCD technology
-
Amazing colour brightness2 – 3,000 lumens colour brightness and 3,000 lumens white brightness
-
Dedicated 4K pixel-shift processor1 – Epson's advanced pixel-shifting resolution-enhancement technology results in an exceptional 4K visual experience
-
Dedicated HDR processor – full 10-bit HDR colour processing uses 100% of the HDR source information
-
High contrast – contrast ratio up to 100,000:1 delivers an extraordinary range of colour and detail in both bright and dark scenes
-
Lens shift – lens shift enables installation flexibility with a range of up to ±60% on the vertical axis and up to ±24% on the horizontal axis
-
Wide ranging connectivity – connect to virtually any device, making your entertainment more accessible
-
Captivating sound – two built-in 10 W stereo speakers for lifelike sound
-
Easy to use – simple and easy to use home screen with quick access to menus
-
2 year projector warranty – enjoy peace of mind
WHAT'S IN THE BOX
EH-TW7100 Projector, Power Cable, Remote Control + Batteries, User Manual, Quick Start Guide
TECHNOLOGY
- Projection System: RGB liquid crystal shutter projection system
- LCD Panel: 0.61-inch wide panel with MLA (C2 Fine, 10 bit)
- Pixel Number: 2,073,600 dots (1920 x 1080)
- Resolution: 4K Enhancement* 1920 x 1080 x 2
OPTICAL
- Zoom: 1 - 1.62 (Optical)
- Screen Size: 40" to 500" [1.16 to 14.87 m] (Zoom: Wide) 40" to 500" [1.89 to 24.01 m] (Zoom: Tele)
- Projection Distance: 100" screen 2.95 - 4.77 m
- Throw Ratio: 1.35 (Zoom: Wide), 2.15 (Zoom: Tele)
- Projection Lens: F Number 1.49 - 1.77
- Projection Lens: Focal Length 18.2 mm - 29.2 mm
- Focus Method: Manual
- Lens Shift: (Manual) Vertical: -60% to +60%, Horizontal: -24% to +24%
- Colour Light Output: 3,000 Lumens
- White Light Output: 3,000 Lumens
- Native Aspect Ratio: 16:9
- Contrast Ratio: 100,000:1
- Light Source: Lamp
- Lamp Type: 250 W UHE
- Lamp Life: 3,500 h, 5,000 h (ECO)
- Colour Reproduction: Up to 1.07 billion colours
- Colour Processing: 10 bit
- Keystone Correction Vertical: -30 to +30 degrees
- Horizontal: -30 to +30 degrees
- 2D / 3D Frequency Image: 240 Hz / 480 Hz
- 2D Vertical Refresh Rate: 192 Hz - 240 Hz
- 3D Vertical Refresh Rate: 400 Hz - 480 Hz
CONNECTIVITY
- Input: Digital 2 x HDMI (1 x HDCP2.2)
- Input: Opt. HDMI 1 x USB A
- Input: Control 1 x RS232c
- Input: Network I/O 1 x USB Type A (for optional Wireless LAN unit)
- Trigger Out: 3.5 mm mini-jack
- Audio Out: Stereo Mini
- Wireless Connectivity: Optional
- Super Resolution: Yes
- High Dynamic Range - HDR10: Yes
- Hybrid Log Gamma - HLG: Yes
- Image Enhancement: Yes
- Frame Interpolation: Yes
- 4K Enhancement: Yes
- 3D Formats: Top-and-Bottom, Side-by-Side
- Built In Speakers: 2 x 10 W
- Direct Power On: Yes
- Security: Kensington®-style lock provision
- Aspect Modes: Yes (Auto / Normal / Full / Zoom / Anamorphic / Wide / Horizontal Squeeze)
- Colour Modes: Dynamic, Bright Cinema, Natural, Cinema
GENERAL
- Dimensions: D x W x H (including feet): 330 x 410 x 164 mm
- Weight: 6.9 kg
- Lamp Warranty: 1 Year or 750 Hours - Whichever comes first
- Projector Warranty: 2 Years
- Power Consumption: Lamp on 406 W
- Power Consumption: Standby 2 W
- Noise Level (Normal/Eco) 35/24 dB
* 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.
