DESCRIPTION

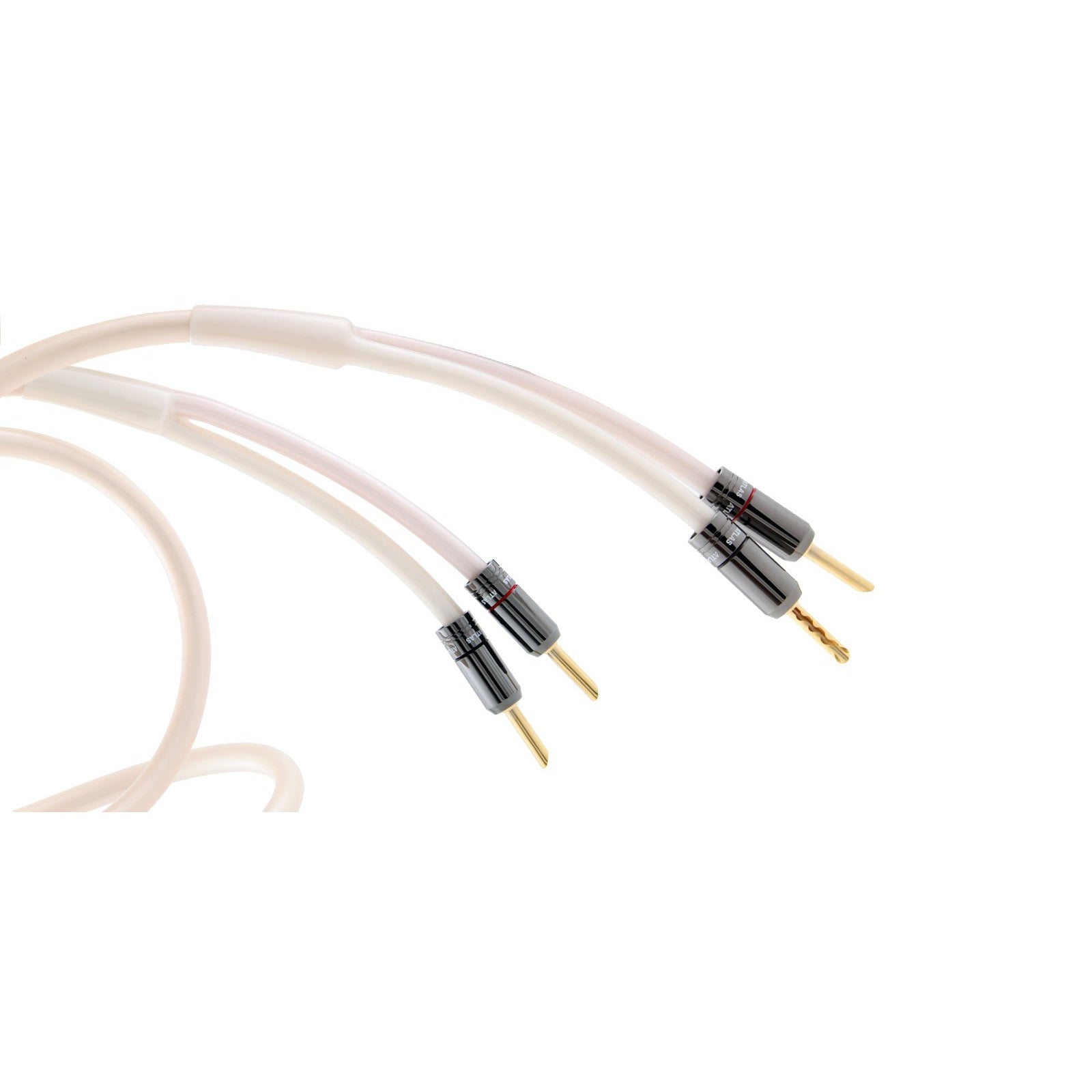

Atlas Equator 2.0 is a 2mm² cable using OFC (Oxygen Free Copper) conductors contained in a high-density PEF dielectric (insulation layer) that’s far more efficient than PVC or polyethylene. The superior dielectric offers both a better measured performance and an audible improvement in dynamics. The core assemblies are contained in a cotton yarn in order to reduce microphony and the outer sheath is in a pearl white finish. Per Meter.
FEATURES
- Atlas Z-Plugs
- OFC Conductors
- PEF Dielectric
- Multi-Core Construction
SPECIFICATIONS
-
CONSTRUCTION Multi-core
-
MATERIAL OFC
-
DIELECTRIC PEF
-
SCREEN N/A
-
CAPACITANCE 70.51 pF/m
-
INDUCTANCE 0.816 µH/m
-
RESISTANCE 0.0094 Ohms/m
-
VOP 0.73
-
OUTSIDE DIAMETER 8.5mm
