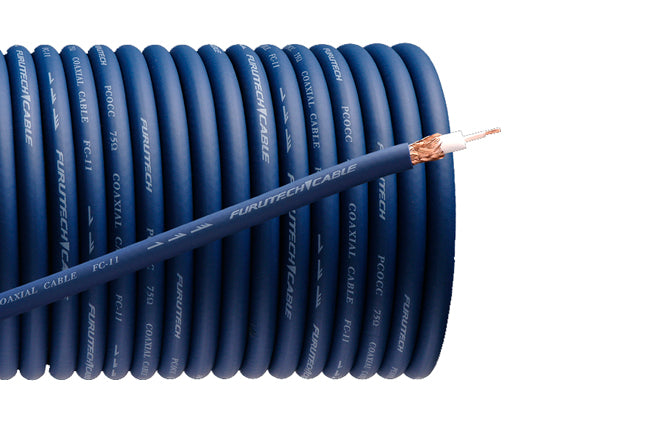

Furutech FC-11 Coaxial Cable (Raw) - Per Metre

Furutech FC-11 Coaxial Cable (Raw)

This cable is sold per metre. Please select the amount required from the “Quantity” box.

α (Alpha)-OCC Conductor (PCOCC：37pcs/0.16mm)

19 AWG α (Alpha)-OCC Conductor(0.74 sq.mm)

FEATURES

※ α (Alpha)-OCC conductor is the fine PCOCC conductor wire strands and treated with the α(Alpha) process.

SPECIFICATIONS

・Construction: α (Alpha) Conductor(37pcs/0.16mm) (≒18 AWG) / (0.74 sq.mm)
・Insulation-1 : High density Polyethylene
・Insulation-2 : Polyethylene foam
・Shield: 0.12mm α (Alpha) Conductor wire Braid
・Sheath: Flexible PVC ( Blue)
・Characteristic Impedance : 75 ± 3 Ω
・Overall Diameter: 8.0mm ( 19AWG)
