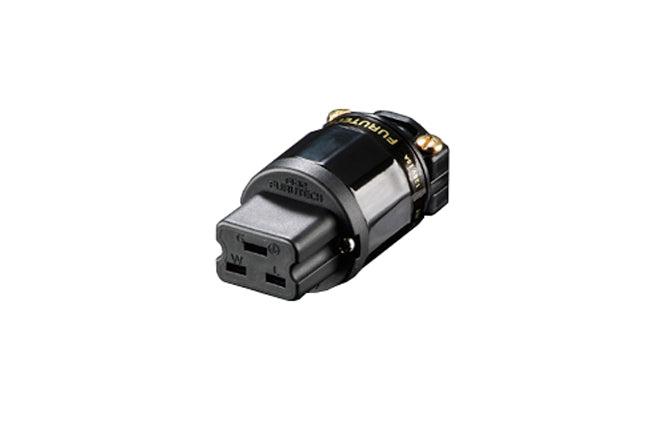

Furutech FI-31-G 24K Gold-Plated 20A IEC Connector
Furutech is known the world over for a huge variety of top-quality OEM parts and delivers consistently superior results by following Pure Transmission principles; examine every link in the power and signal path and ultimately optimize each and every element.
The FI-31-G has a similar body construction to the FI-11 Series but is a C19 IEC Connector. Sometimes referred to as 20A IEC.
Rating
High End Performance 20A Components.
Specifications
・α (Alpha) Phosphor bronze Conductor
・Floating Field Damper System* prevents induced magnetic fields
・Nylon /fiberglass front body, Polycarbonate shell- Clear
・Specified for cable diameters of 6.6mm to 16.0mm (with a longer screw up to 20mm)
・Black nonmagnetic stainless cable damping clamp with stainless screws (M4 X 20mm L)
・Wire accommodation: Max 5.5 Square mm 10AWG
・Dimensions: Body length 44.0mm × 39.0mm dia. × 77.0mm overall length
・Rated: 16A/250V
