The SCL-4 is a custom in-wall loudspeaker designed for use as an LCR or surround channel in a variety of applications. It features JBL's patented 2409H 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn. A 7-inch (180mm) Advanced Aluminium Matrix cone cast-frame woofer provides detailed and dynamic response with low distortion. The integrated MDF enclosure is designed for installation in standard 2x4 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-4 is ideal for use in medium to large rooms.
SCL-4 Highlights
-
7” (180mm) cast-frame, advanced aluminium matrix cone woofer with large ferrite low-distortion motor structure
-
D2-derived 1" (25mm) 2409H annular ring diaphragm Teonex® compression driver
-
Patented High-Definition Imaging (HDI™) technology provides elevated performance in combination with patented D2-Series compression driver.
-
Design can be installed in any orientation, for maximum installation flexibility
-
Ideal for LCR or surround channel use
-
Patent Pending extended range L-Bracket mounting system
-
Low resonance, well-damped MDF wood rear enclosure
-
High-performance passive network utilizing all air-core inductors, polypropylene capacitors
-

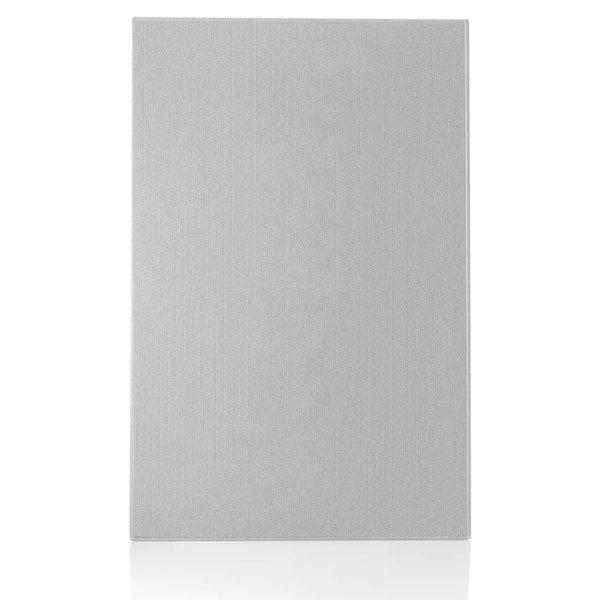

Zero-bezel, magnetically-attached grille
-
Dual binding post inputs for bi-wire or bi-amplified connections
General Specifications
Speaker Type | Two-way In-Wall Loudspeaker |
---|---|
Low Frequency Transducer | 7” (180mm) cast-frame, advanced aluminium matrix cone woofer |
Mid/High Frequency Transducer | D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver |
Maximum Recommended Amplifier Power | 200 watts RMS |
Frequency Response (-6dB on-axis) | 45 Hz – 33KHz |
Coverage area (-6dB @ 20 KHz) | 100 x 100 deg, (-6dB @ 10 KHz) 120 x 120 deg (Hor x Vert) |
Sensitivity (2.83V@1m) | 91dB |
Nominal Impedance | 6 Ohm |
Crossover Frequencies | 1.3 KHz |
Enclosure type | Sealed In-Wall Mount with included back box |
Inputs | Dual Gold-plated Five-way Binding Posts |
Dimensions (H x W x D) | 25" x 16.1" x 3.7" (636mm x 409mm x 93mm) |
Weight | 27.6 lb (12.51 kg) |
Finishes | Matte Black |
