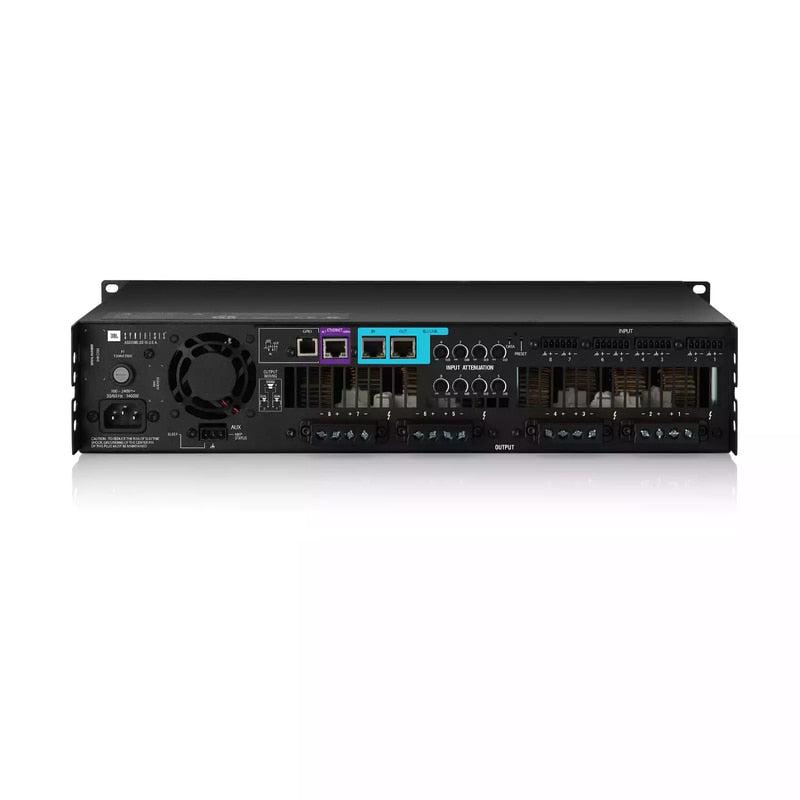

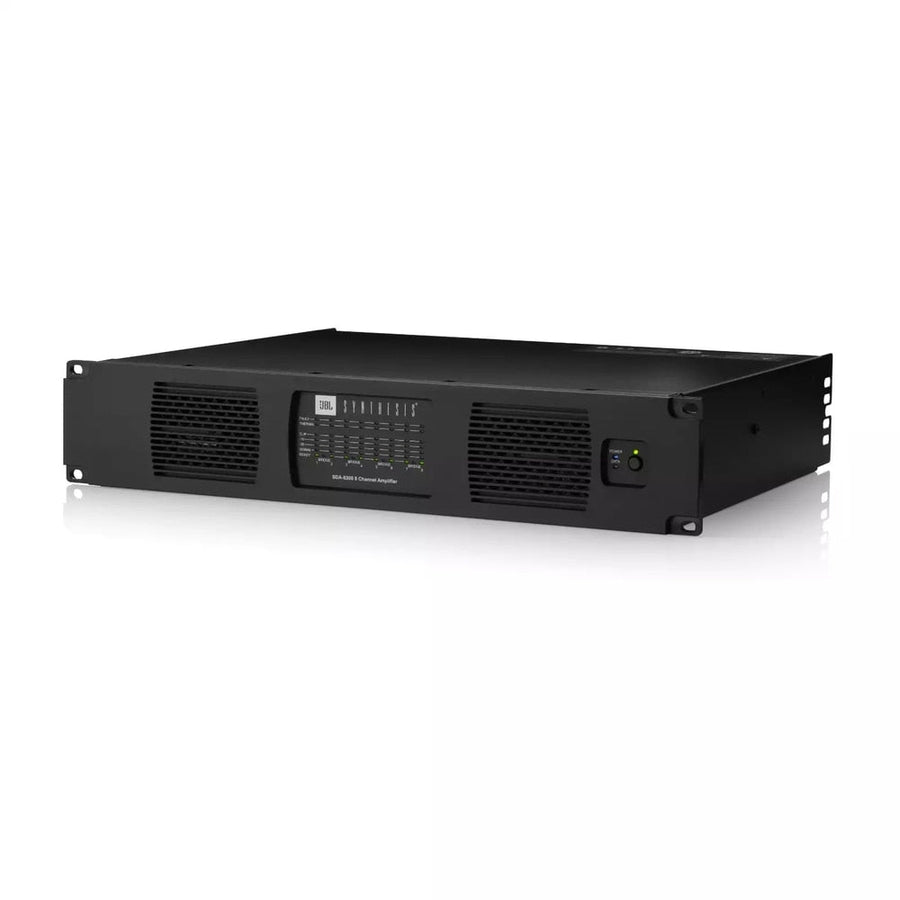

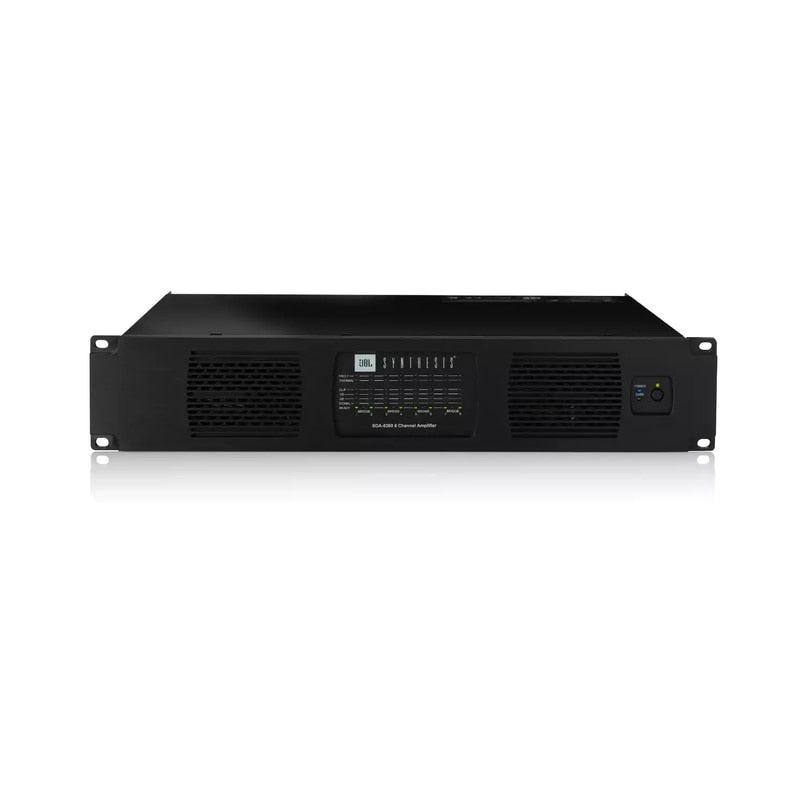

The SDA-8300 is a versatile 8-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 300W into 8 ohms and adjacent channel pairs can be bridged to deliver 600W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, and height channel loudspeakers as well as in-wall subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.
General Specifications
| Inputs |
Balanced 3-pin block connectors, one per channel |
| Rated Output Power Into 8 Ohms |
300 |
| Rated Output Power Into 4 Ohms |
300 |
| Rated Output Power Into 2 Ohms |
150 |
| Bridged Output Power Into 8 Ohms |
600 |
| Finishes |
Black High-gloss, Woodgrain |
| Damping Factor |
1000 |
| 7-Volt Capable |
| Voltage Gain (at Maximum Level Setting) 34 dB |
| Analog Input Signal to Noise Ratio |
104 dB |
| BLU Link Signal-to-Noise Ratio |
108 dB |
Speaker Specifications
| Frequency Response |
+/-0.25db |
| Signal-to-Noise Ratio |
>108db |
| Total Harmonic Distortion (THD) |
<0.35% |
| Power Requirements (+/-10%) |
100VAC – 240VAC 50/60hz |
Dimensions
| Height |
3.5″ (8.75 cm) |
| Width |
19″ (47.5 cm) |
| Depth |
14.25″ (35.63 cm) |
| Weight |
23.5 lbs (10.66 kg) |
