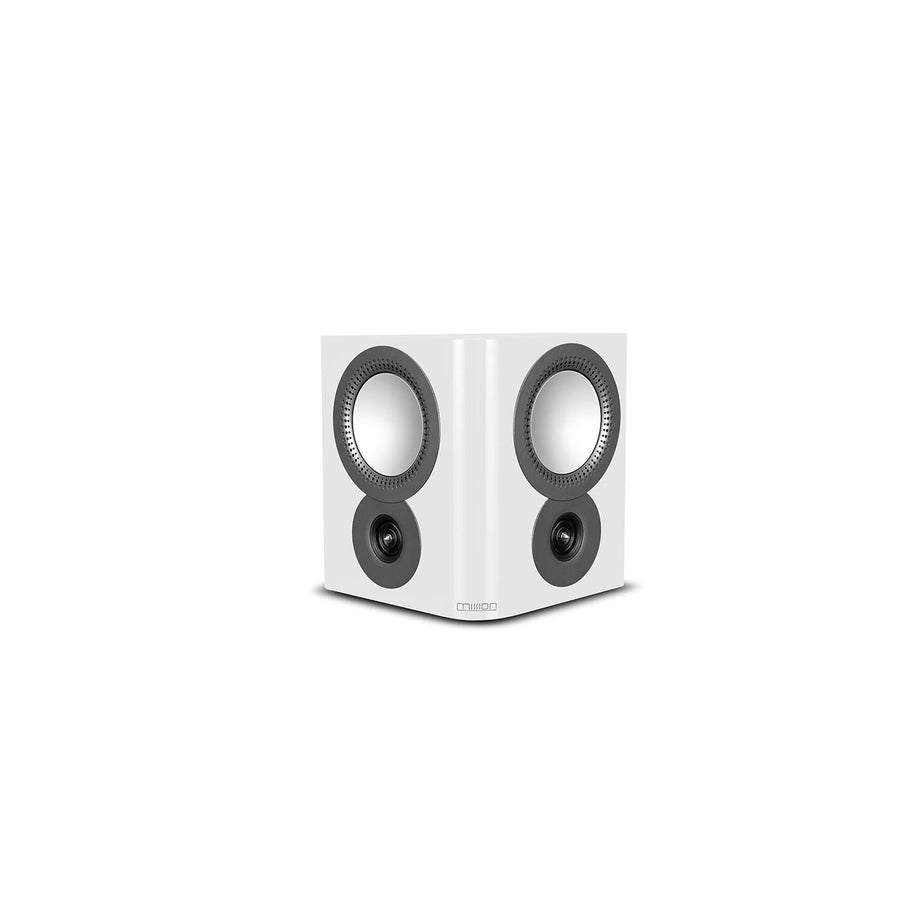

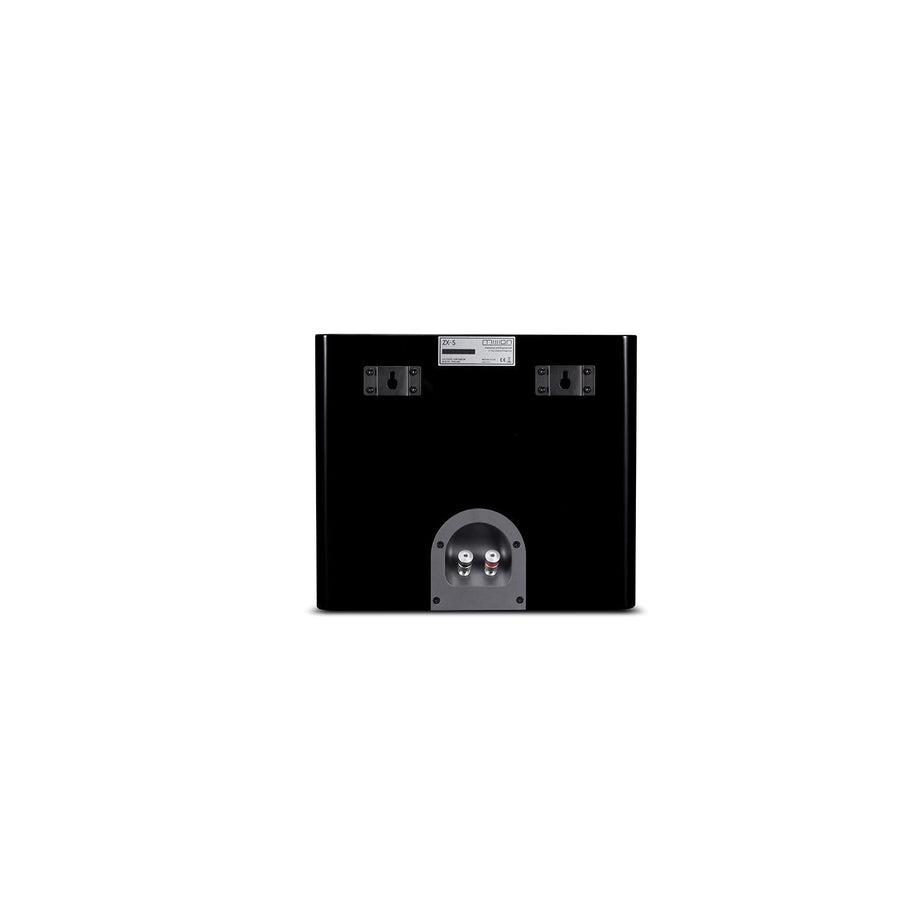

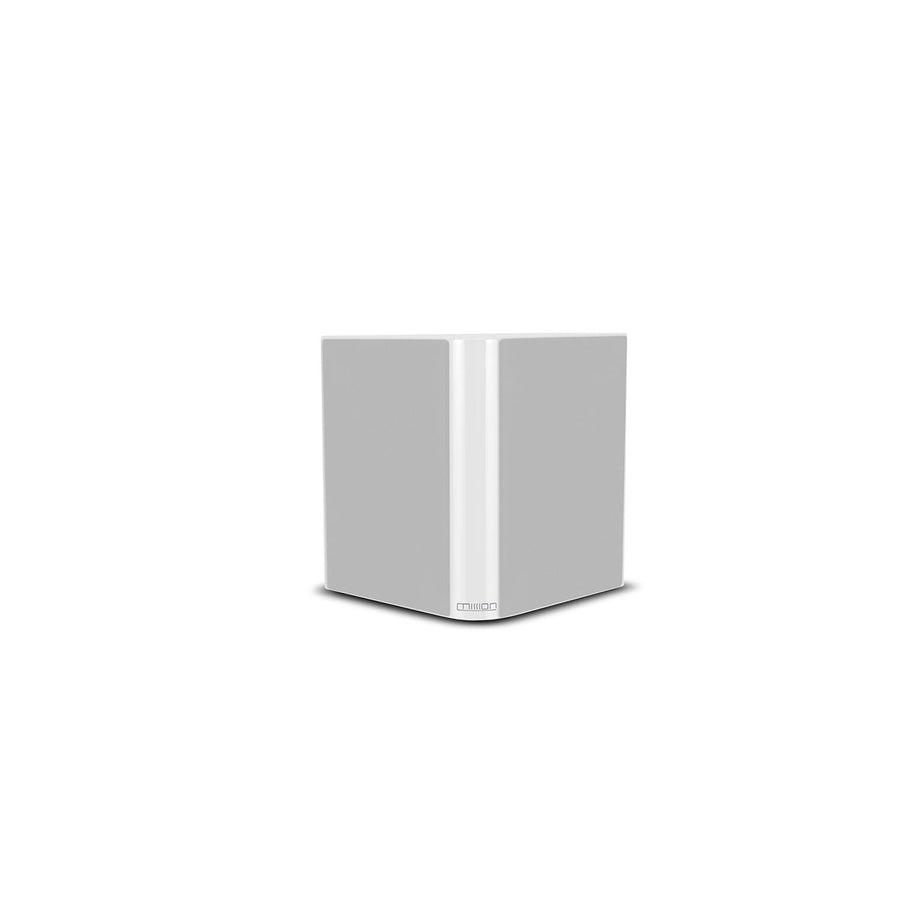

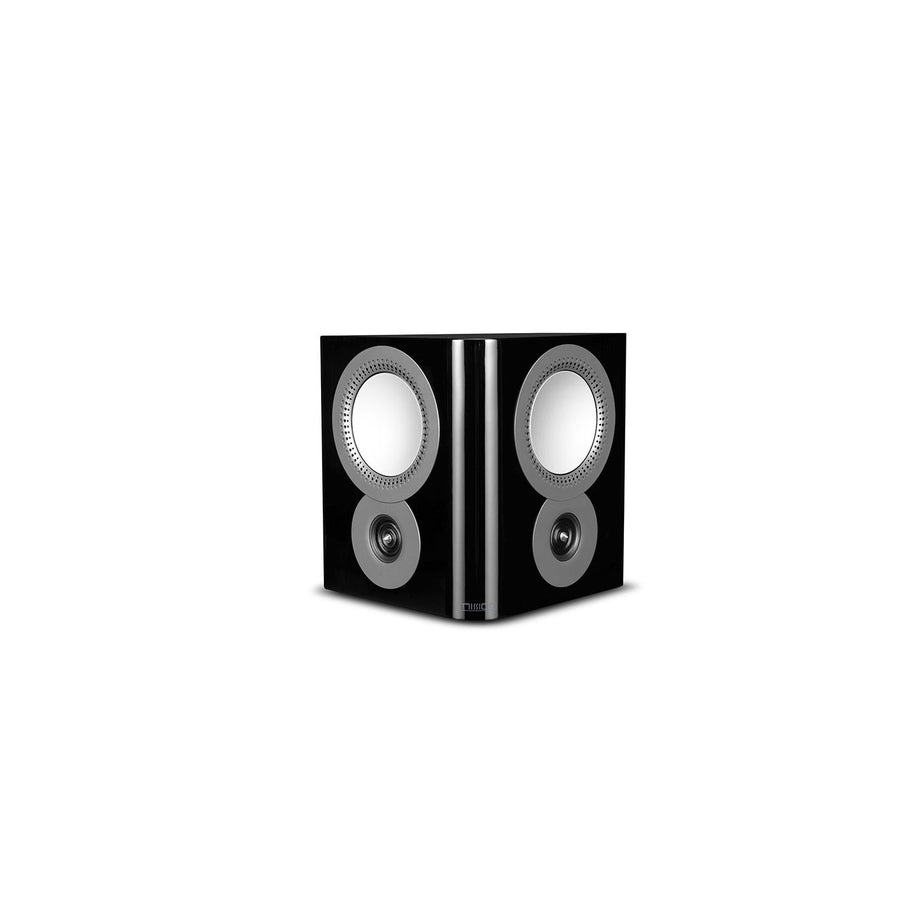

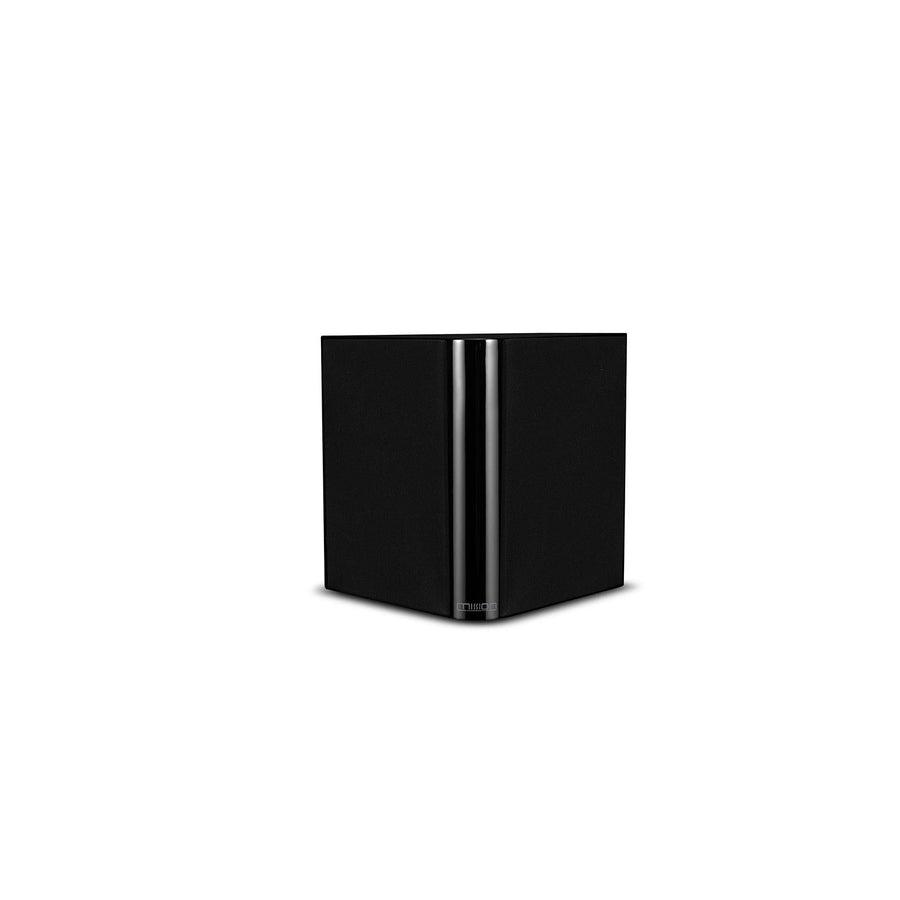

Mission ZX-S Surround Speaker
The ZX-S Surround Speaker is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.
Mission ZX incorporates purpose-designed bass driver cones, precision-engineered motor systems, advanced treble units, and more. As ever with Mission products; ‘Music leads, Technology Follows’. No compromise.
Mission ZX-S Specifications
| General Description |
2-way surround speaker |
|
|
| Enclosure Type |
Closed-box system |
|
|
| Transducer Complement |
2-way |
|
|
| Bass Driver |
5.25" (130mm) aluminium cone x2 |
|
|
| Treble Driver |
1.5" (38mm) ring dome x 2 |
|
|
| AV Shield |
No |
|
|
| Sensitivity (2.0V @ 1m) |
88dB |
|
|
| Recommended Amplifier Power |
25-150W |
|
|
| Peak SPL |
109dB |
|
|
| Nominal Impedance |
8 compatible |
|
|
| Minimum Impedance |
4.3 |
|
|
| Frequency Response(+/-3dB) |
120Hz ~ 24kHz |
|
|
| Bass Extension(-6dB) |
100Hz |
|
|
| Crossover Frequency |
2.7kHz |
|
|
| Dimensions |
285 * 335 * 185mm |
|
|
| Net Weight |
8.6kg/pcs |
