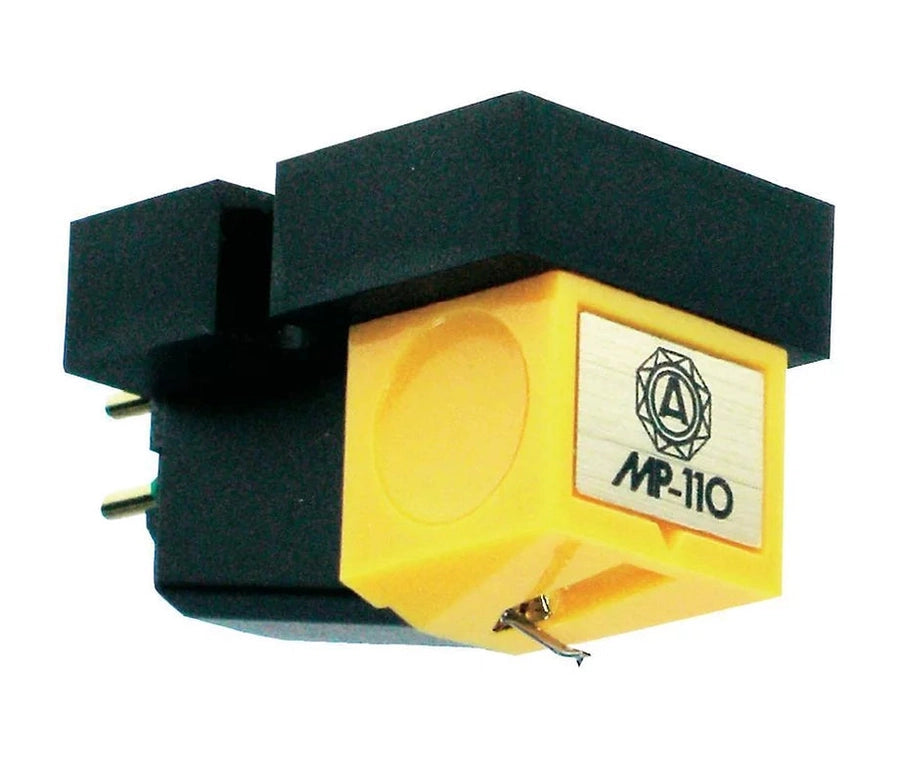

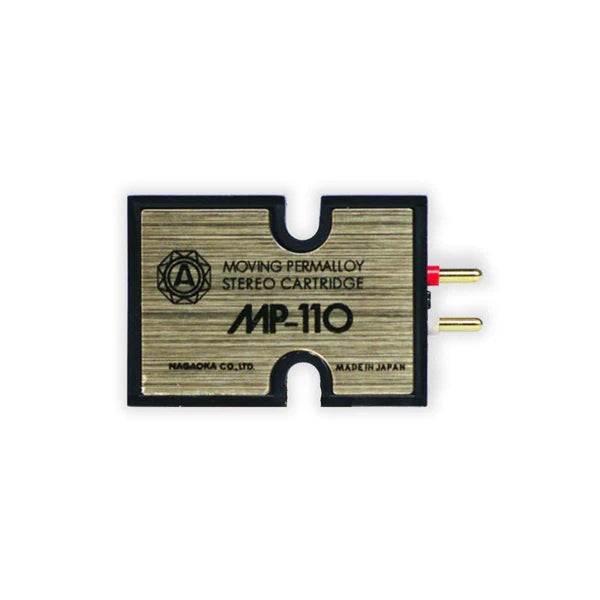

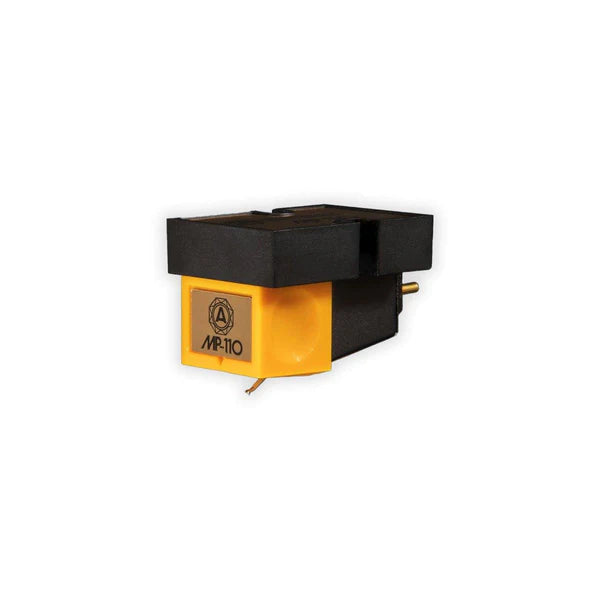

Nagaoka MP-110 MM (Permalloy) Cartridge
Building on the award winning "MP-11", the Nagaoka MP-110 brings a whole new level of balanced fidelity and presence with a wide range of music and musical genre.
-
Ortofon Comparison 2M BLUE
FEATURES
- Superfine polished Elliptical stylus tip
- Powerful Samarium Cobalt Magnet
- Lightweight Aluminium alloy Cantilever
- Reinforced Carbon Fibre pole shoe
- Anti Ferro-Magnetic Permalloy shield casing
Specifications
Type: Moving magnet (Permalloy) |
Cantilever: Aluminium alloy |
Stylus type: Superfine polished elliptical bonded diamond with 0.4 x 0.7 mil radii |
Weight: 6.5 g Output voltage @ 1kHz,5cm/sec: 5mV |
Output voltage @ 1kHz,5cm/sec: 5mV |
Frequency response: 20Hz-20kHz |
Channel balance @ 1kHz: > 1.5dB |
Channel separation @ 1kHz: > 23dB |
Recommended loading: 47k ohms |
Dynamic compliance: 6.0 x 10-6 cm/dyne |
Tracking force range: 1.5 - 2.0 g |
Break-in period: 30 hours |
Stylus replacement: Nagaoka JN-P110 |
Product Type:
Cartridges
