This excellent performer features a dual voice coil equipped version of the CS610 woofer and a pair of aluminium dome tweeters. This versatile premium speaker allows stereo sound in small spaces like bathrooms and hallways, and can also be used as surround effects speakers in home theatres. The tweeter array can be rotated after installation to get the best high frequency coverage, and like the CS650 there is a tweeter and woofer level control for final adjustment. Because there are two discrete channels, these can be wired as bipole, dipole, or even as surround rears in a 7.1 theatre!

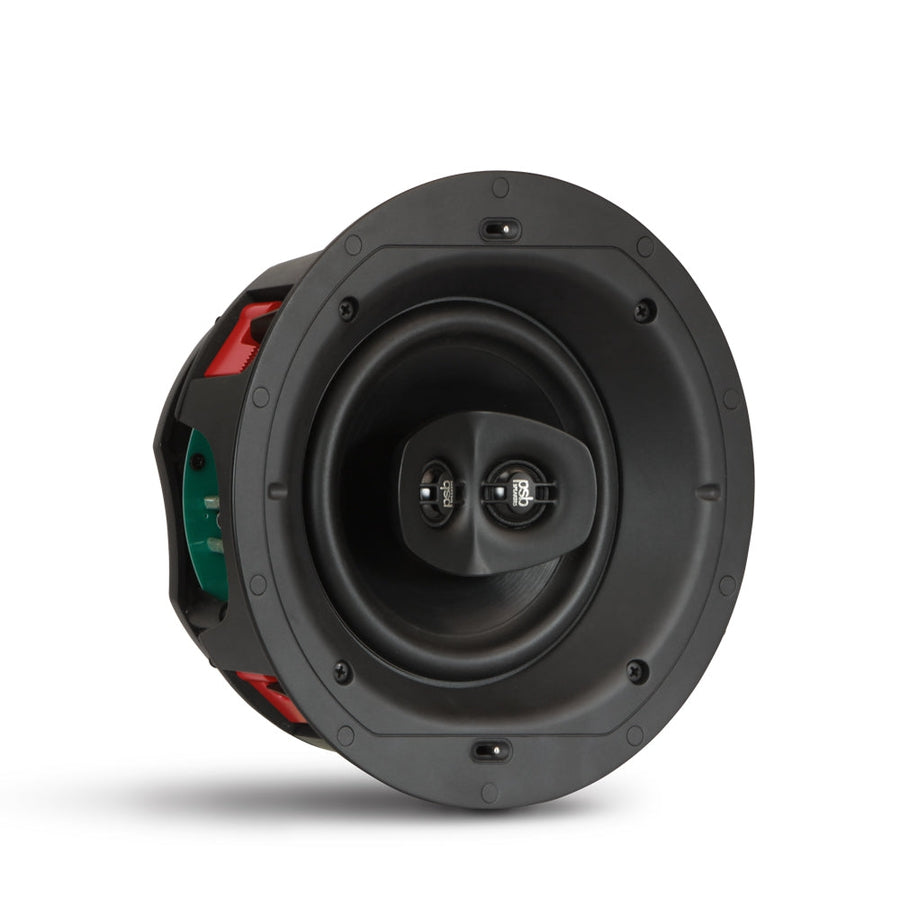

CS630 Stereo/Surround Speaker
This excellent performer features a dual voice coil equipped version of the CS610 woofer and a pair of aluminium dome tweeters. This versatile speaker allows stereo sound in small spaces like bathrooms and hallways, and can also be used as surround effects speakers in home theatres. The tweeter array can be rotated after installation to get the best high frequency coverage, and like the CS650 there is a tweeter and woofer level control for final adjustment. Because there are two discrete channels, these can be wired as bipole, dipole, or even as surround plus surround rears in a 7.1 theatre!
On Axis @ 0° ±3dB: 50-20,000Hz
Anechoic Chamber: 85dB
Listening Room: 87dB
Nominal: 10 Ohms
Minimum: 8 Ohms
Recommended: 10 – 100 Watts
Tweeter (Nominal): 2 x 3/4" (19mm) Aluminium Dome
Woofer (Nominal): 6 1/2” (165mm) Fiber filled Injection Moulded Polypropylene Cone / Rubber Surround
Crossover: 2100Hz, LR4
Design Type: Open Back
Size (W x H x D)
Cutout Diameter – 8 3/8” * (212mm)
Mounting Depth – 4 1/2″ * (114mm)
Round Grille Diameter – 9 7/16″ * (240mm)
Square Grille Size – 9 1/2″ * (241mm)
Weight
4.8lb (2.2kg)/each
