The Yamaha HIFI3 HI-FI Package is a high-quality audio system that includes a receiver, CD player, and speakers. It delivers excellent sound and is a great choice for music lovers.

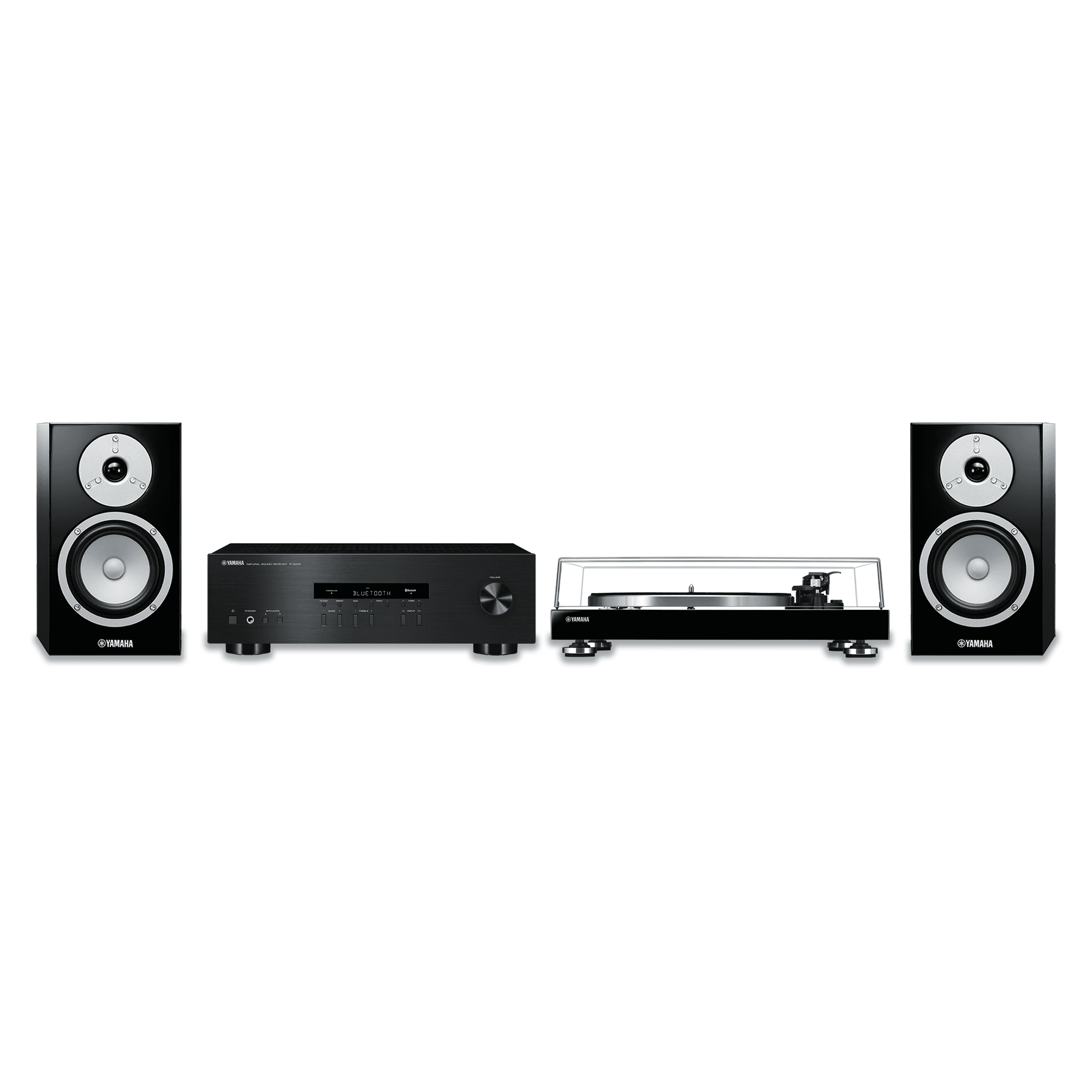

Package includes a R-S202 2-Channel Receiver, a TT-S303 Belt-Drive Turntable and a pair of NS-BP301 Bookshelf Speakers.
Yamaha, with a long history of 125 years as a musical instrument maker, also has a high reputation for HiFi components. The R-S202 was created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
The R-S202, with 100 W* x 2 high drive power that's above its class, has a high sound quality design that minimises the length of signal routes and optimises the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.
* 8 ohms, 40 Hz - 20 kHz, 0.2% THD
The R-S202 provides Bluetooth® functionality to let you enjoy easy wireless music playback from smartphones and other devices. Use the display on your phone to select the songs from your library and hear them play with the full power and sound quality of your audio system.
You can register up to 40 total FM and AM stations that you often listen to, then conveniently select them from either the receiver or the remote control. Auto Preset lets you automatically search for and register FM stations that can be received in your area. Frequencies appear on the display, so even when you want to listen to a new station, you can easily tune to its frequency.

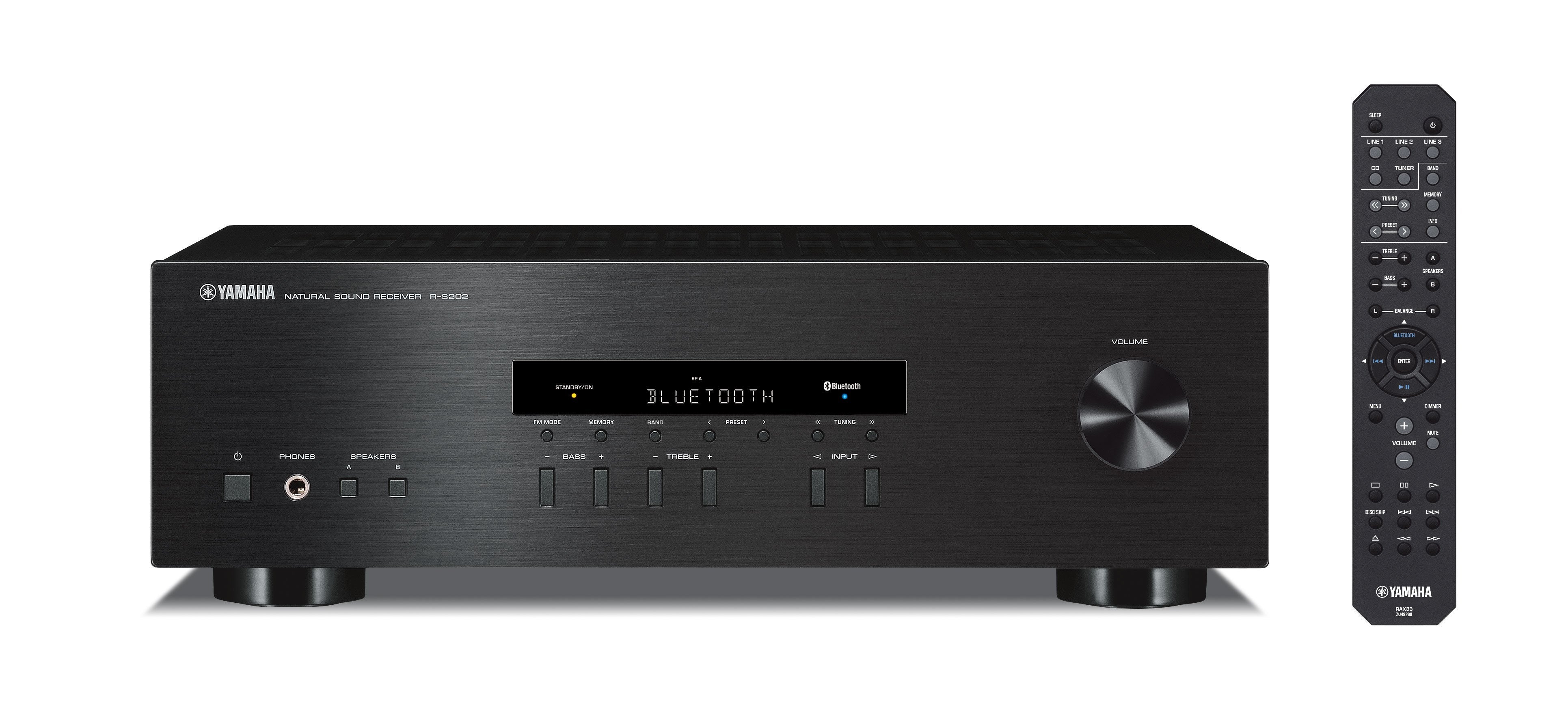

The R-S202 inherits the simple and sophisticated design style that Yamaha HiFi audio is famous for. With an elegant hair line finish, it harmonises beautifully with other HiFi audio equipment. The operating buttons and volume knobs also show our commitment to simplicity and ease of use.

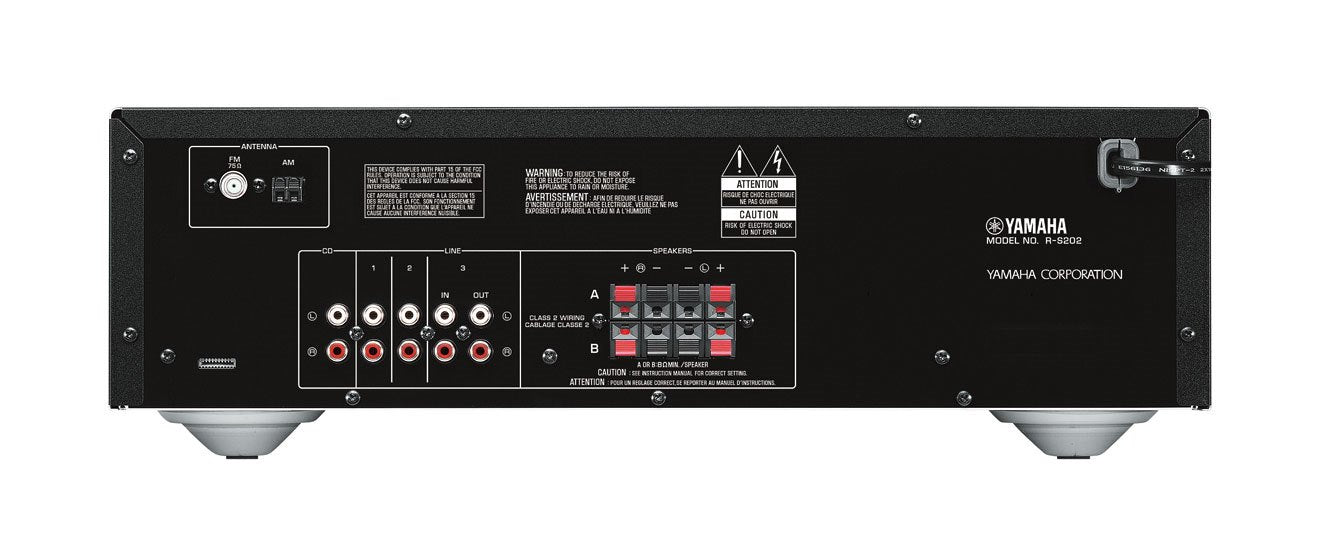

Equipped with speaker terminals for two systems, this receiver lets you can connect two sets of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A+B).
| HIFI3 (R-S202) | ||
|---|---|---|
| Network section | Bluetooth | Yes (SBC / AAC) |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 115 W + 115 W | |
| Minimum RMS Output Power (8 ohms, 40Hz～20kHz) | 100 W + 100 W (0.2% THD) | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 125 W / 150 W / 165 W / 180 W | |
| Frequency Response | 20Hz-20kHz (0+/-0.5db), 10Hz-100kHz (0+/-3.0db) | |
| Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz) | 0.025% (Phono (MM) to REC Out), 0.2% (CD to SP Out) | |
| Signal-to-Noise Ratio (CD) | 100 dB (S: 500 mV) | |
| Input Sensitivity (CD) | 500 mV / 47 k-ohms | |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 μV (20.8 dBf) | |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 72 dB / 70 dB | |
| Standby Power Consumption | 0.5 W | |
| Dimensions (W x H x D) | 435 x 141 x 322 mm; 17-1/8” x 5-1/2” x 12-5/8” | |
| Weight | 6.7 kg; 14.8 lbs. | |
| HIFI3 (TT-S303) | ||
|---|---|---|
| Turntable | Drive Method | Belt drive |
| Motor | DC motor | |
| Rotation Speed | 33-1/3 rpm, 45 rpm | |
| Rotation Speed Variation | ±2% | |
| Wow And Flutter | 0.2% | |
| Platter | Aluminium die-cast (Diameter 30 cm) | |
| Output Level | 140 mV (-17 dBV, with RIAA EQ), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) | |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) | |
| Tonearm | Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm | |
| Overhang | 19 mm | |
| Stylus Pressure Adjustment Range | 0-4 g | |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) | |
| Attached Cartridge | Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) | |
| Stylus Pressure | 3.5 ± 0.5 g | |
| Cartridge Weight | 5.0 ± 0.3 g | |
| Cartridge Height | 17.0 ± 0.7 mm | |
| Head-shell Weight | 10 g (including screws, nuts and wires) | |
| Audio Specifications | Output Terminal | RCA: 1 (PHONO) |
| General | Power Consumption | 1.5 W |
| Standby Power Consumption | 0.1 W | |
| Dimension (W×H×D) | 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2” | |
| Weight | 4.8 kg; 10.6 lbs. | |

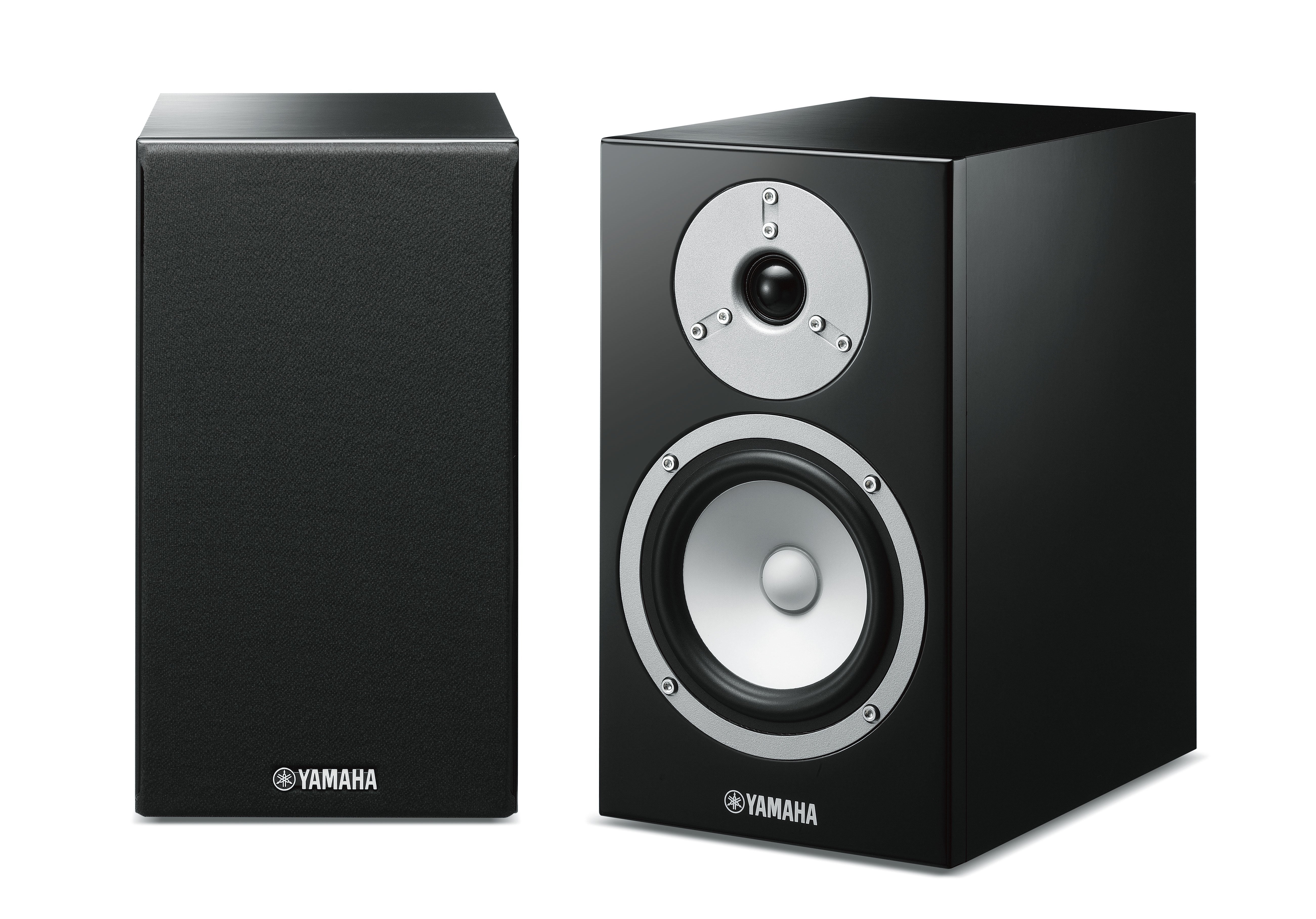

| HIFI3 (NS-BP301) | ||
|---|---|---|
| Type | 2-Way Bass-Reflex Bookshelf Speaker System | |
| Woofers | 13 cm (5-1/4”) cone | |
| Tweeter | 3 cm (1-1/4”) soft dome | |
| Frequency Response | 55 Hz – 40 kHz | |
| Nominal Input Power | 60 W | |
| Maximum Input Power | 110 W | |
| Sensitivity | 85 dB / 2.83 V / 1 m | |
| Crossover Frequencies | 4 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 176 x 310 x 297 mm; 6-7/8” x 12-1/4” x 11-3/4” | |
| Weight | 4.6 kg; 9.9 lbs. | |
