The Yamaha R-N800A Network Receiver offers high-quality sound and a modern HiFi style, with features such as YPAO technology, MusicCast streaming, and a special phono input for vinyl records. It also includes a high-performance USB DAC function and a DAB/DAB+ tuner, all designed to deliver superior sound quality and an ideal listening environment.

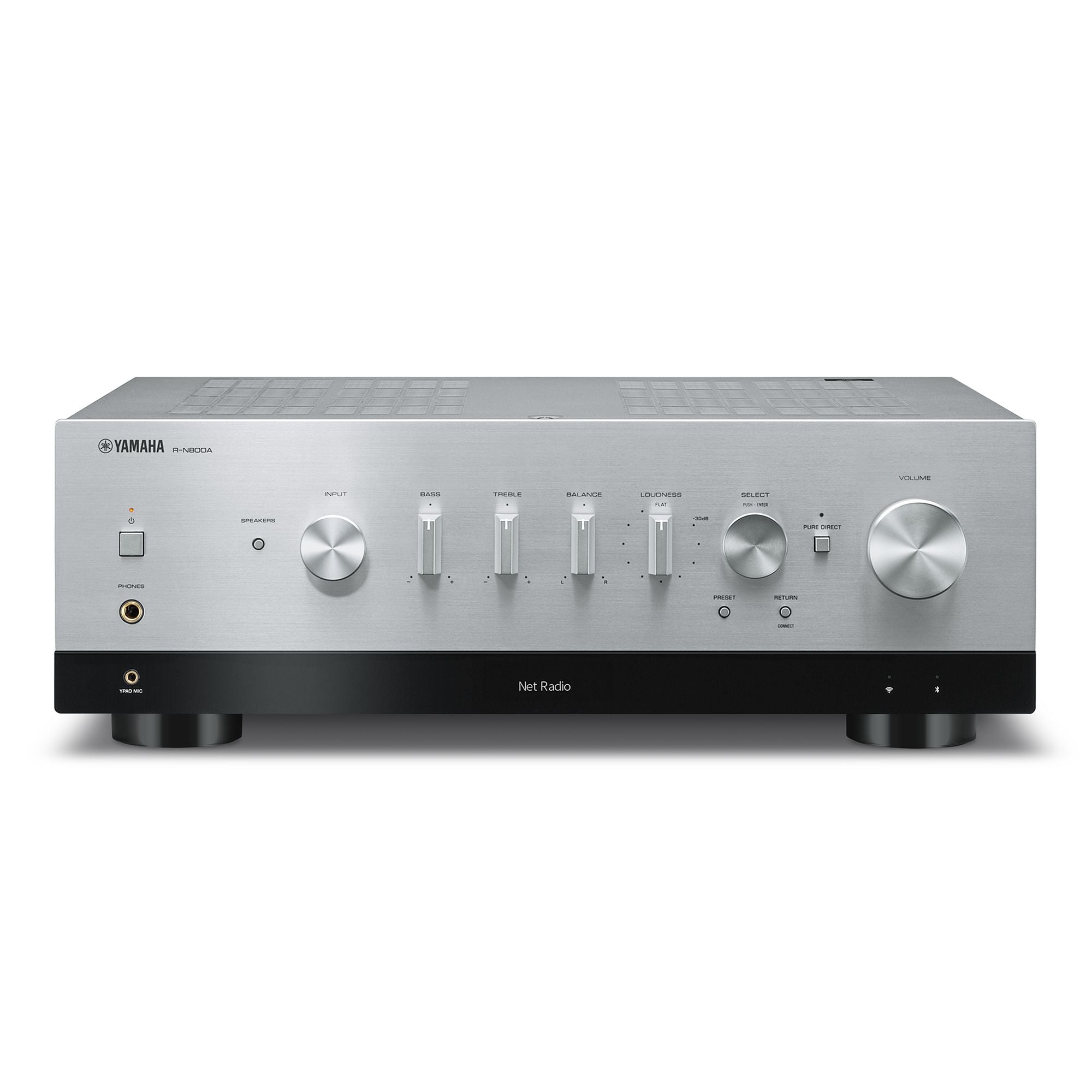

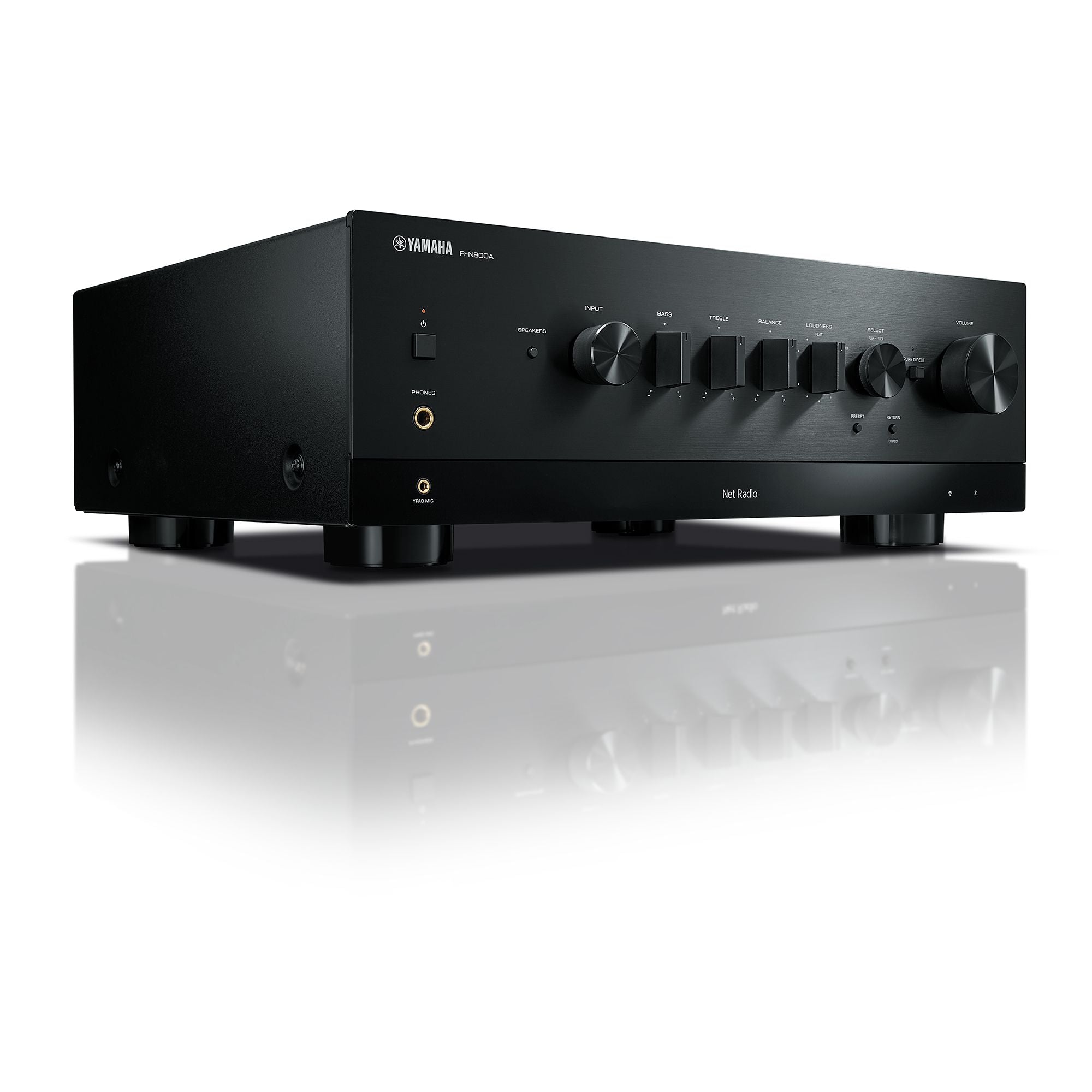

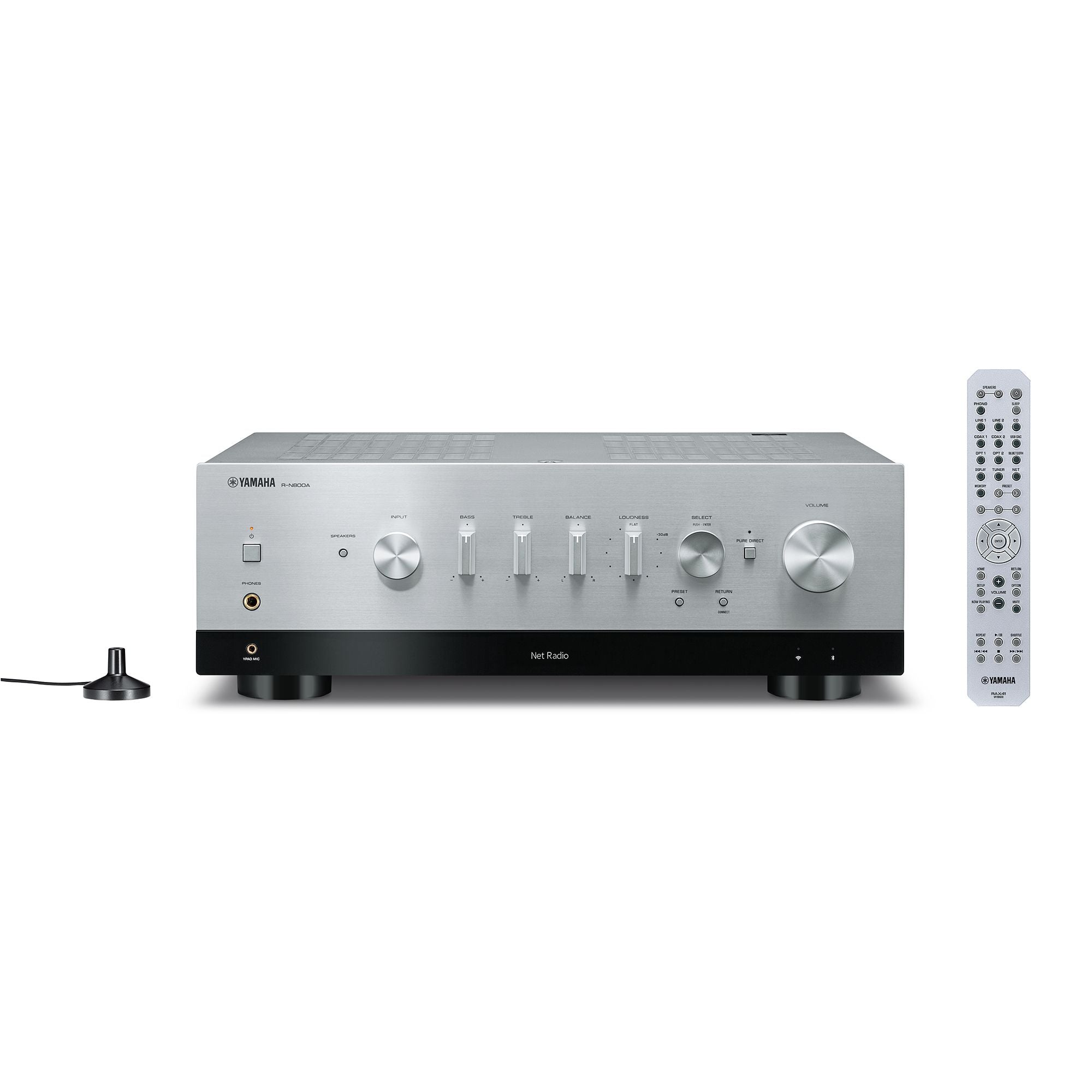

Yamaha R-N800A Network Receiver
HIGH-QUALITY SOUND FOR ALL YOUR ROOMS
The Yamaha R-N800A delivers music enjoyment with a modern HiFi style. It includes our original YPAO™ technology to create an ideal listening environment. From streaming services to high-resolution sound sources, you can immerse yourself in superb sound quality.
Features
- Authentic HiFi quality with Top-ART mechanical structure and low impedance concept
- ESS SABRE ES9080Q Ultra DAC for superior S/N performance
- YPAO™-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment
- MusicCast lets you stream from your favourite music services
- High-performance USB DAC function supports DSD 11.2 MHz native playback and 384 kHz playback
- Original speaker terminals cut from pure brass for highly secure connection
- Special phono input terminals to enjoy your vinyl record collection.
- Optical terminal to get your TV sound with HiFi quality
ENJOY YOUR RECORDS, TOO
The comprehensive connectors of the R-N800A include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.
USB DAC FUNCTION
A stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and PCM 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.
DAB / DAB+ TUNER
DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB / DAB+ stations.
*Availability of DAB / DAB+ tuner varies by region
HIGH-PRECISION, HIGH-PERFORMANCE
The R-N800A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

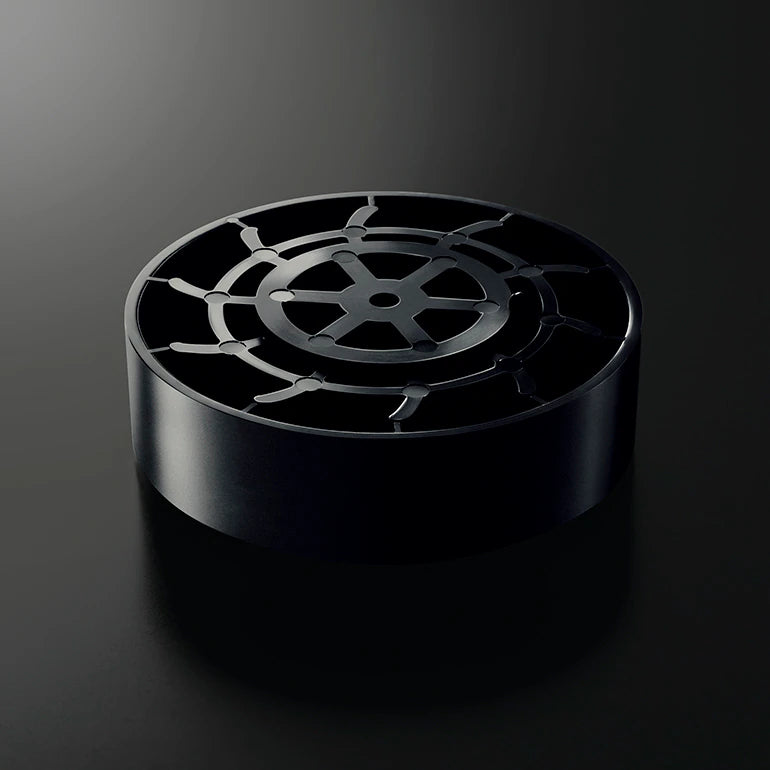

Yamaha boasts over 60 years of history as an audio brand. And the technology of R-N800A comes directly from Yamaha’s legendary Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology), which faithfully maintains the integrity of the audio by combining a meticulously symmetrical left / right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity, equipped with the special resin frame “Art Base” that absorbs and blocks unnecessary vibration. It maintains sonic purity and dynamism of sound.
Specifications
R-N800A | ||
---|---|---|
Network section | File Format | MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD |
Wi-Fi | Yes | |
Bluetooth | Yes (SBC / AAC) | |
AirPlay | Yes | |
Rated Output Power | [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms) | |
High Dynamic Power/Channel (8/6/4/2 ohms) | 140 / 170 / 220 / 290 W | |
Frequency Response | 10 Hz-100 kHz 0±1.0 dB, 20-20 kHz0±0.5 (Pure Direct ON) | |
Signal-to-Noise Ratio (CD) | 100 dB (Pure Direct ON) | |
Audio In / Out | Phono, CD, line1, line2 / Pre out, Subwoofer out | |
Digital Input | Optical1, Optical2, Coaxial1, Coaxial2 | |
HDMI(ARC) | No | |
Phono Input | Yes | |
USB Input | USB DAC (USB B-type) | |
Ethernet | Yes | |
Headphone Out | Yes | |
Subwoofer Out | Yes | |
Control (Trigger) Out | Yes | |
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) | |
FM Signal-to-Noise Ratio (Mono/Stereo) | 69 dB / 68 dB | |
Pure Direct | Yes | |
ToP-ART | Yes | |
Standby Power Consumption | 0.1 W (Network standby on/ Wi-Fi connection 1.8 W) | |
Dimensions (W x H x D) | 435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2") | |
Weight | 11.4 kg; 25.2 lbs |
