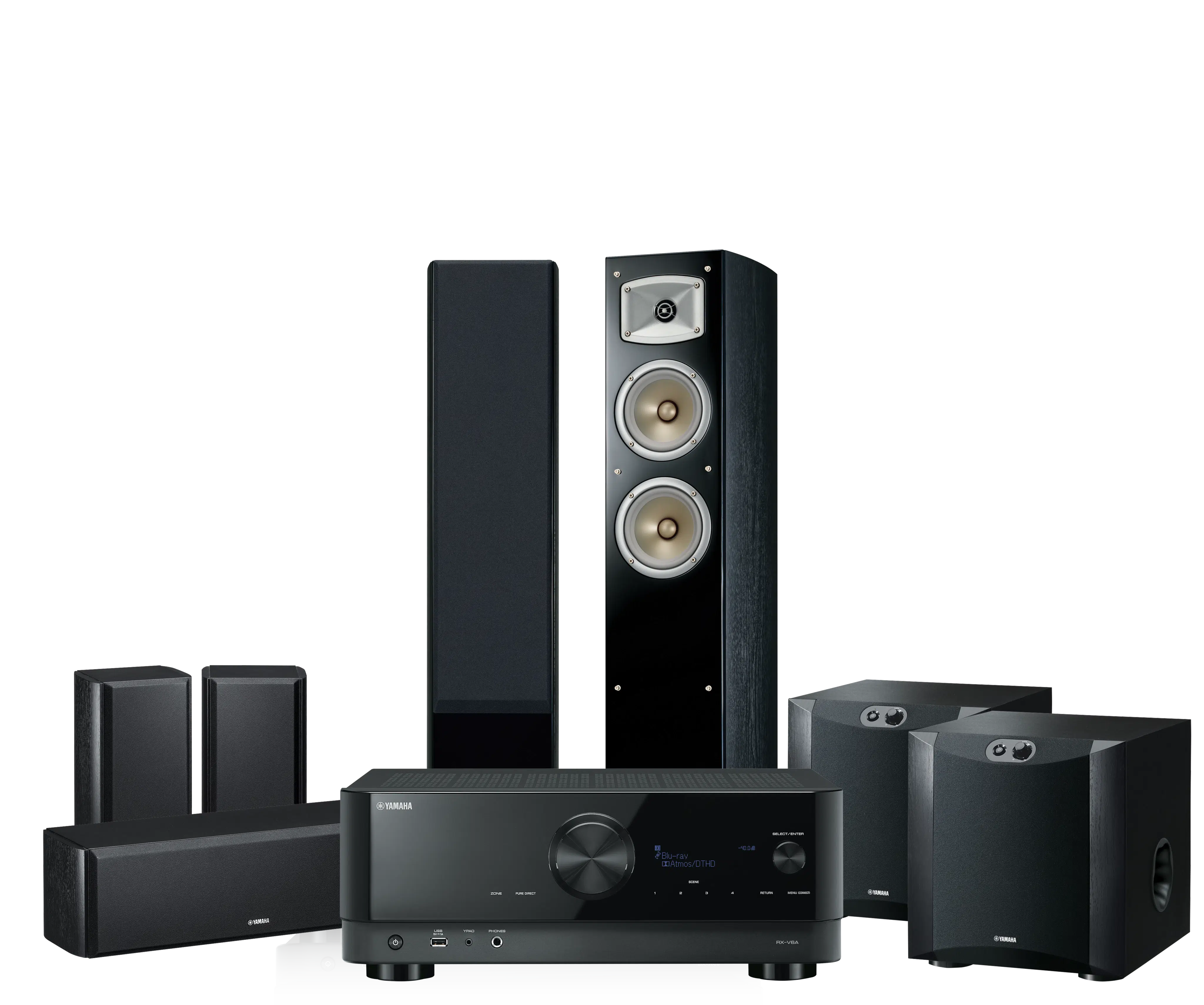

The Yamaha YHT-4A 5.1 HT Pack is a high-quality home theater system that includes a receiver and five speakers for immersive sound. It is easy to set up and use, making it a great choice for anyone looking to upgrade their home entertainment experience.
The YHT-4A features enhanced connectivity, user-friendly operation and thrilling sound performance to keep you on the edge of your seat.
This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.
Touch or voice control – the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive.
*Availability of voice command control via Amazon Alexa and Google Assistant varies by region.
*A third party device is required to initiate voice commands.
YPAO (Yamaha Parametric room Acoustic Optimizer) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theatre room.

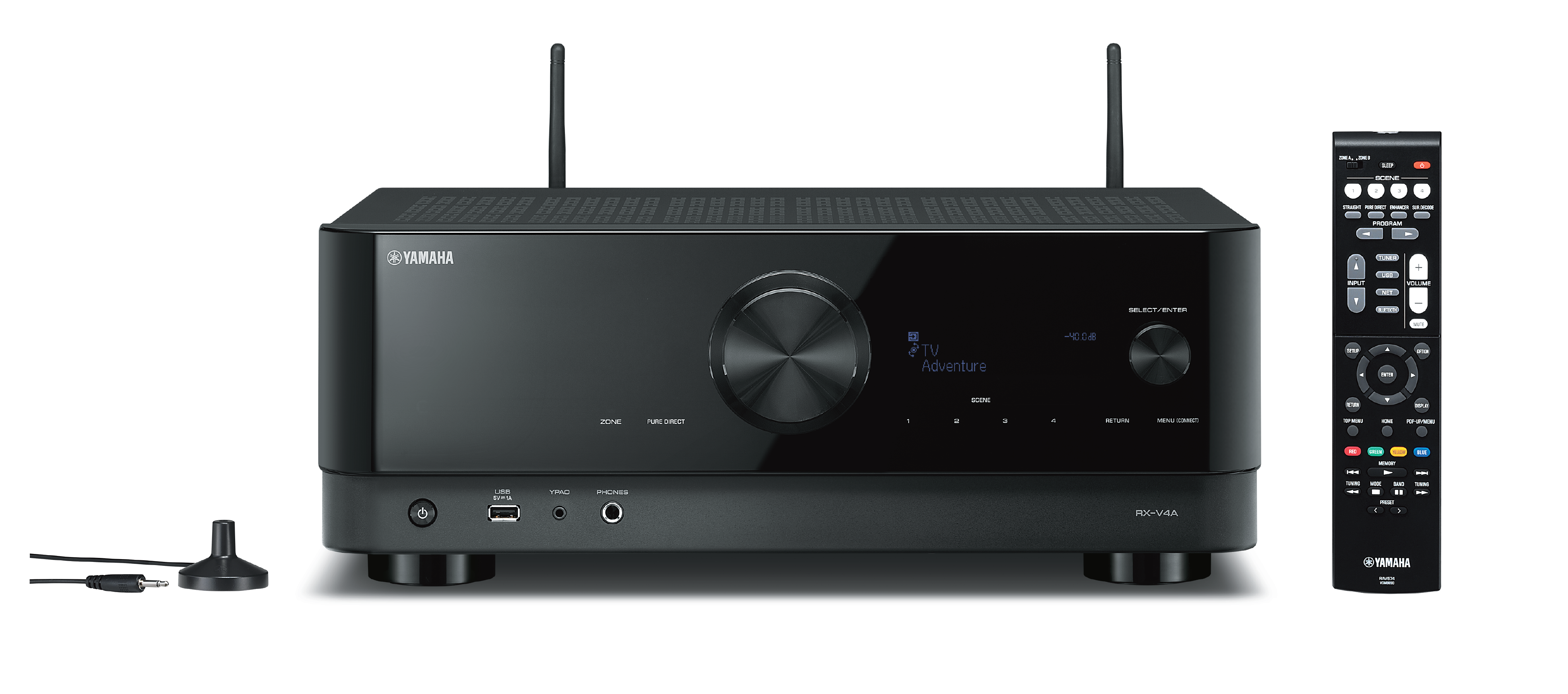

| RX-V4A | ||
| AV Receiver | ||
|
Amplifier Section
|
Channel | 5.2 |
| Rated Output Power (1kHz, 1ch driven) |
115 W (6 ohms, 0.9% THD)
|
|
| Rated Output Power (20Hz-20kHz, 2ch driven) |
80 W (6 ohms, 0.06% THD)
|
|
| Maximum Effective Output Power (1kHz, 1ch driven) |
145 W (6 ohms, 10% THD)
|
|
| High Slew Rate Amplifier | Yes | |
|
Surround Sound Processing
|
Surround:AI | N/A |
| CINEMA DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | N/A | |
| Dialogue Lift | N/A | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby Atmos | N/A | |
| Dolby Atmos Height Virturalizer | N/A | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | N/A | |
| DTS:X | N/A | |
| DTS-HD Master Audio | Yes | |
|
Audio Features
|
File Format |
MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
|
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO multi-point measurement | N/A | |
| YPAO Volume | N/A | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | N/A | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter |
384 kHz / 32-bit BB PCM5101A
|
|
|
Video Features
|
HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through |
8K60B, 4K120AB (via future update)
|
|
| HDMI Up-scaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10+ |
Yes (via future update)
|
|
| VRR/ALLM/QMS/QFT |
Yes (via future update)
|
|
| Video adjustment | N/A | |
|

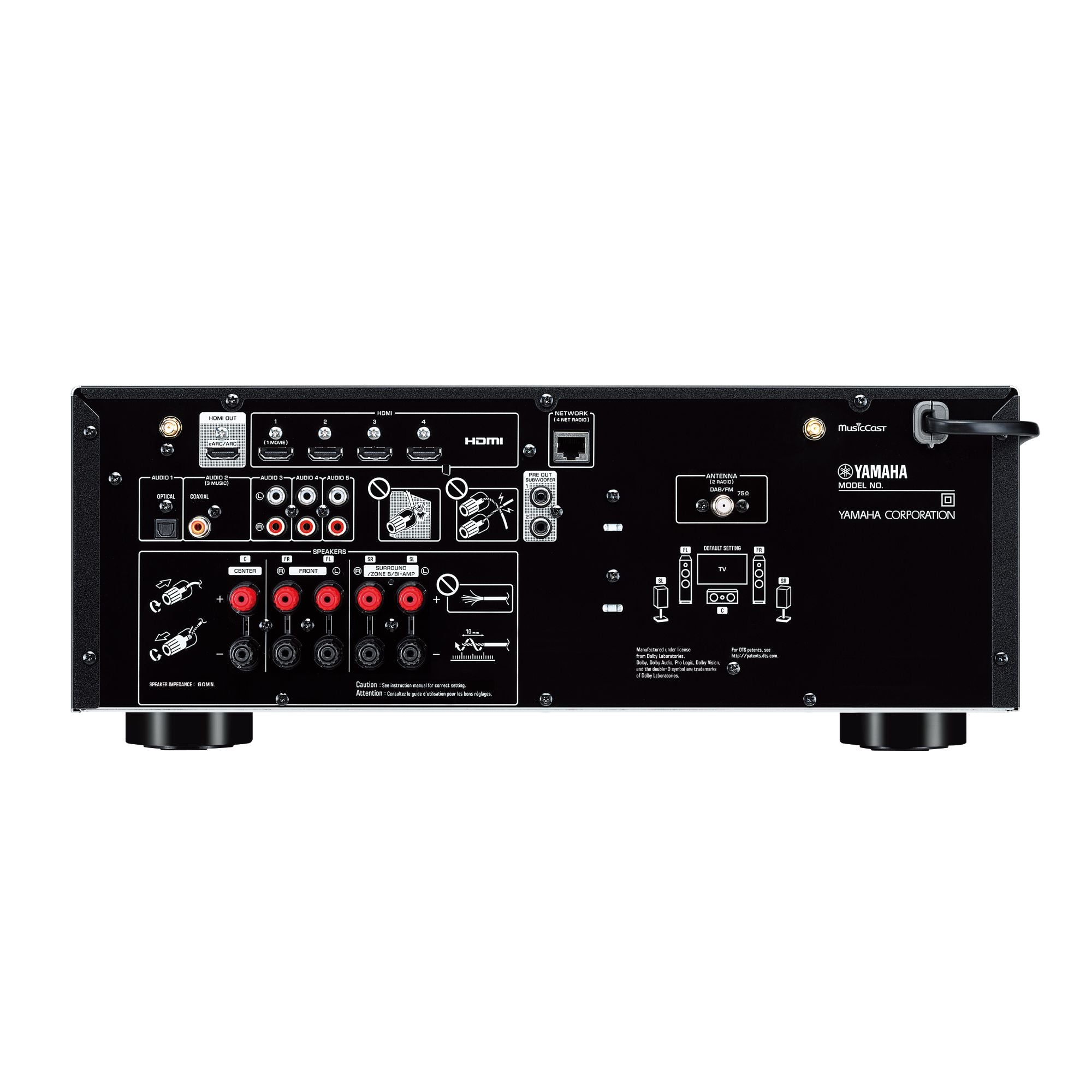

Connectivity
|
MusicCast Surround | Yes |
| HDMI Input/Output | 4 / 1 | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi |
Yes (2.4 / 5 GHz)
|
|
| AirPlay 2 | Yes | |
| Bluetooth |
Yes (SBC / AAC)
|
|
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 3 / 0 | |
| Phono Input | N/A | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 0.2-ch | |
| Headphone Output | 1 | |
|
Tuner Section
|
FM/AM Tuner |
Yes (Availability varies by region.)
|
| DAB Tuner |
Yes (Availability varies by region.)
|
|
|
User Interface
|
On-screen display |
Graphical User Interface
|
| SCENE | Yes (4 sets) | |
| App Control |
Yes (iPhone / iPad / Android phone / tablet)
|
|
| Web Browser Control | N/A | |
| Remote Control Unit | Yes | |
|
Zone Control
|
Zone 2 Audio Output | N/A |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | N/A | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| +12V Trigger Output | N/A | |
| Remote (IR) Input/Output | N/A | |
| Party Mode | N/A | |
|
General
|
Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) |
435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D)
|
|
| Weight |
8.8 kg; 19.4 lbs.
|
|
